Siemens 2-port valves with flanged connections, PN 25, VXF53

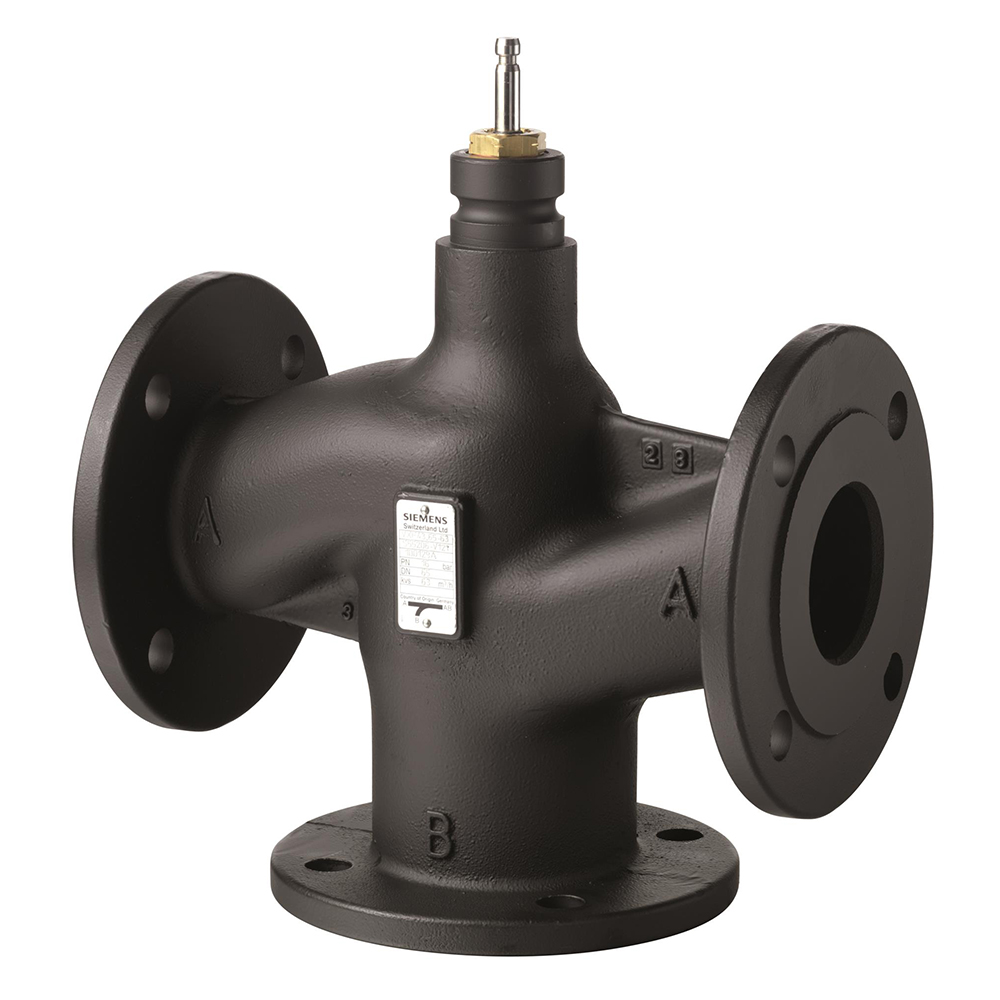

西門子 三通閥 閥體 VXF53..系列 Siemens 3-port valves with flanged connections, PN 25

請來信詢價

  • Siemens 3-port valves with flanged connections, PN 25
  • 德國品牌
  • 三通閥 閥體
  • 閥體材質：球墨鑄鐵(Nodular cast iron EN-GJS-400-18-LT )
  • 公稱壓力：PN25
  • 法蘭連接(ISO 7005)
  • 可用於冰水, 低或高溫純水的封閉式管路中
  • 因型號眾多, 詳細型號請來信詢問
  • 球墨鑄鐵材質強度更高, 耐壓&耐溫範圍更高
貨號: VXF53 分類: , , , 標籤: , , , , , ,

描述

Siemens Globe Valves and Actuators

Siemens Globe Valves and Actuators

  • With flanged connections to ISO 7005
  • For chilled, low and high temperature water and brine in closed circuits
  • Performance valves for medium temperatures from -20…220 °C
  • Valve body of Nodular cast iron EN-GJS-400-18-LT
  • DN 15…150
  • kvs 1.6…400 m3/h
  • Flange type 21, flange design B
  • VXF53..K with pressure compensation to handle high differential pressure
  • Equipable with electro-motoric actuators SAX.., SAV.. or electro-hydraulic actuators SKD.., SKB.., SKC..



額外資訊

Stroke

To DN 50: 20 mm,
From DN 65: 40 mm
Leakage rate

0…0.01% of the kvs value
Medium temperature

-20…220 °C
Valve characteristic

Equal percentage , kvs 250/400 linear
Rangeability

DN 15, kvs ≤ 1,25 m³/h: >50 ,
DN 15…150: >100
Permissible operating pressure

2500 kPa
Material, valve body

Nodular cast iron EN-GJS-400-18-LT
Material, inside set

Stainless steel
PN class

PN 25
