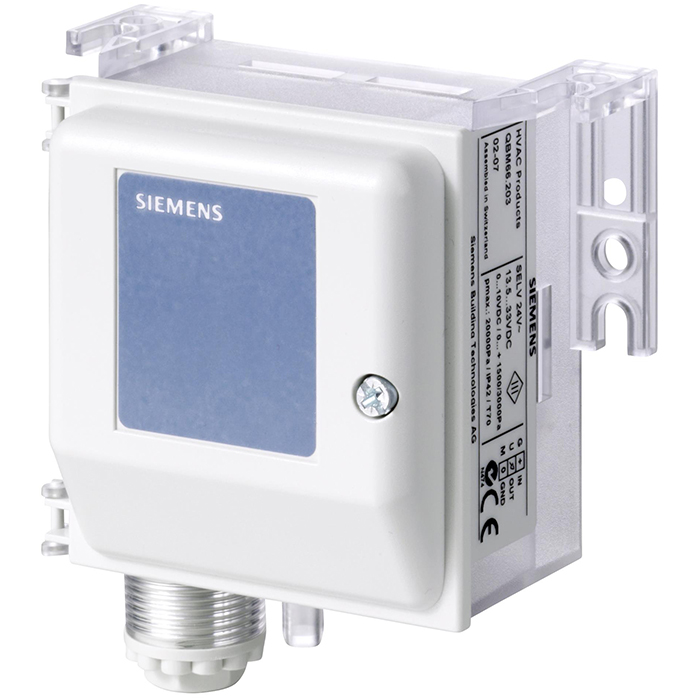

西門子 QBM2030系列 壓差感測器 Siemens Differential Pressure Sensor QBM2030

請來信詢價

  • Siemens HVAC Products
  • 測量區間可達3000Pa
  • 可調整壓力測量範圍
  • 操作電壓AC 24 V or DC 13.5…33 V
  • 輸出: DC 0…10V
  • 歸零調整
  • 簡易安裝
  • 不需維護
清除

描述

For air and non-aggressive gases

  • Pressure-linear characteristic with selectable pressure measuring range
  • Operating voltage AC 24 V or DC 13.5…33 V
  • Output signal DC 0…10 V
  • Zero-point adjustment
  • Simple and fast mounting thanks to integrated mounting brackets in the housing
  • Maintenance free
  • Calibrated and temperature-compensated measuring signal
  • Supplied with tubing connection set

Siemens Differential Pressure Sensor QBM2030

Product#Pressure measuring ranges 1Pressure measuring ranges 2Pressure measuring ranges 3Output Signal
QBM3020-1U−50... +50 Pa−100... +100 Pa0...100 Pa0…10 V DC
QBM3020-10...200 Pa0...250 Pa0...500 Pa0…10 V DC
QBM3020-30...1000 Pa0...1500 Pa0...3000 Pa0…10 V DC

額外資訊

Product No.

QBM2030-1U, QBM2030-5, QBM2030-30

Operating voltage

AC 24 V, DC 13.5…33 V

Power consumption

0.5 VA

Analog output, signal

DC 0…10 V

Sensing element

Pressure diaphragm

Response time

1 sec

Pressure conneciton

Connection branch, 6.2 mm dia.

Connection, electrical

Screw terminals

Degree of protection

IP42

Dimensions (W x H x D)

92 x 94 x 49 mm
