西門子 GLB系列 風門驅動器 Siemens OpenAir Rotary Damper Actuators without Spring return GDB/GLB

請詢價

  • 德國品牌
  • OpenAir™
  • Air Damper Actuators for HVAC applications
  • GLB series
  • Rotary air damper actuators 10 Nm, without spring return
  • 10 Nm for approx.
  • 1.5 m² damper area
  • 150 s running time
清除

描述

Air damper actuators

Rotary version, AC 24 V / AC 230 V

  • Electronic motor driven actuators for three-position and modulating control
  • Nominal torque 5 Nm (GDB), 10 Nm (GLB)
  • Mechanically adjustable span between 0…90°
  • Pre-wired with 0.9 m long connection cable
  • Type-specific variations with adjustable offset and span for the positioning signal
  • Position indicator
  • Feedback potentiometer
  • Self-adaption of rotational angle range and adjustable auxiliary switches for supplementary functions

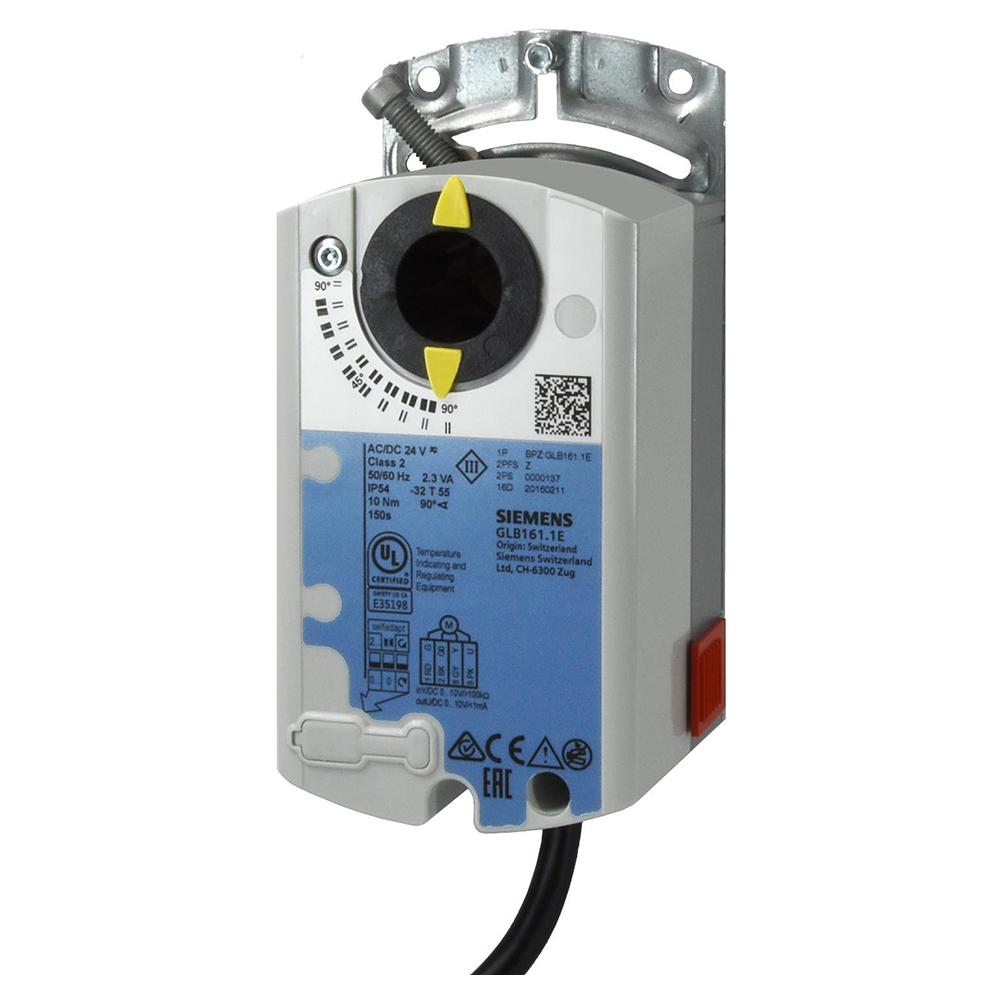

Siemens GLB OpenAir™ Air Damper Actuators

Rotary air damper actuators 10 Nm, without spring return
Product No.DescriptionOperating voltagePositioning signalPower consumptionAuxiliary switch
GLB131.1ERotary air damper actuator, AC 24 V, 3-position, 10 Nm, 150 sAC 24 V3-position 2 VA, 1 W0
GLB132.1ERotary air damper actuator, AC 24 V, 3-position, 10 Nm, 150 s, potentiometerAC 24 V3-position 2 VA, 1 W0
GLB136.1ERotary air damper actuator, AC 24 V, 3-position, 10 Nm, 150 s, 2 auxiliary switchesAC 24 V3-position 2 VA, 1 W2
GLB161.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 10 Nm, 150 sAC 24 VDC 0...10 V3 VA, 2 W0
GLB163.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 10 Nm, 150 sAC 24 VDC 0…35 V, Adjustable 3 VA, 2 W0
GLB164.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 10 N, 150 s, 2 auxiliary switchesAC 24 VDC 0…35 V, Adjustable 3 VA, 2 W2
GLB166.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 10 Nm, 150 s, 2 auxiliary switchesAC 24 VDC 0...10 V3 VA, 2 W2
GLB331.1ERotary air damper actuator, AC 230 V, 3-position, 10 Nm, 150 sAC 230 V3-position 2 VA, 1 W0
GLB332.1ERotary air damper actuator, AC 230 V, 3-position, 10 Nm, 150 s, potentiometerAC 230 V3-position 2 VA, 1 W0
GLB336.1ERotary air damper actuator, AC 230 V, 3-position, 10 Nm, 150 s, 2 auxiliary switchesAC 230 V3-position 2 VA, 1 W2

額外資訊

Torque

10.00 Nm

Air damper area

1.50 m²

Angular rotation

90 °

Positioning time

150 s

Degree of protection

IP54

Ambient temperature, operation

-32…55 °C

Dimensions (W x H x D)

68 x 137 x 59.5 mm

Product No.

GLB131.1E, GLB132.1E, GLB136.1E, GLB161.1E, GLB163.1E, GLB164.1E, GLB166.1E, GLB331.1E, GLB332.1E, GLB336.1E
