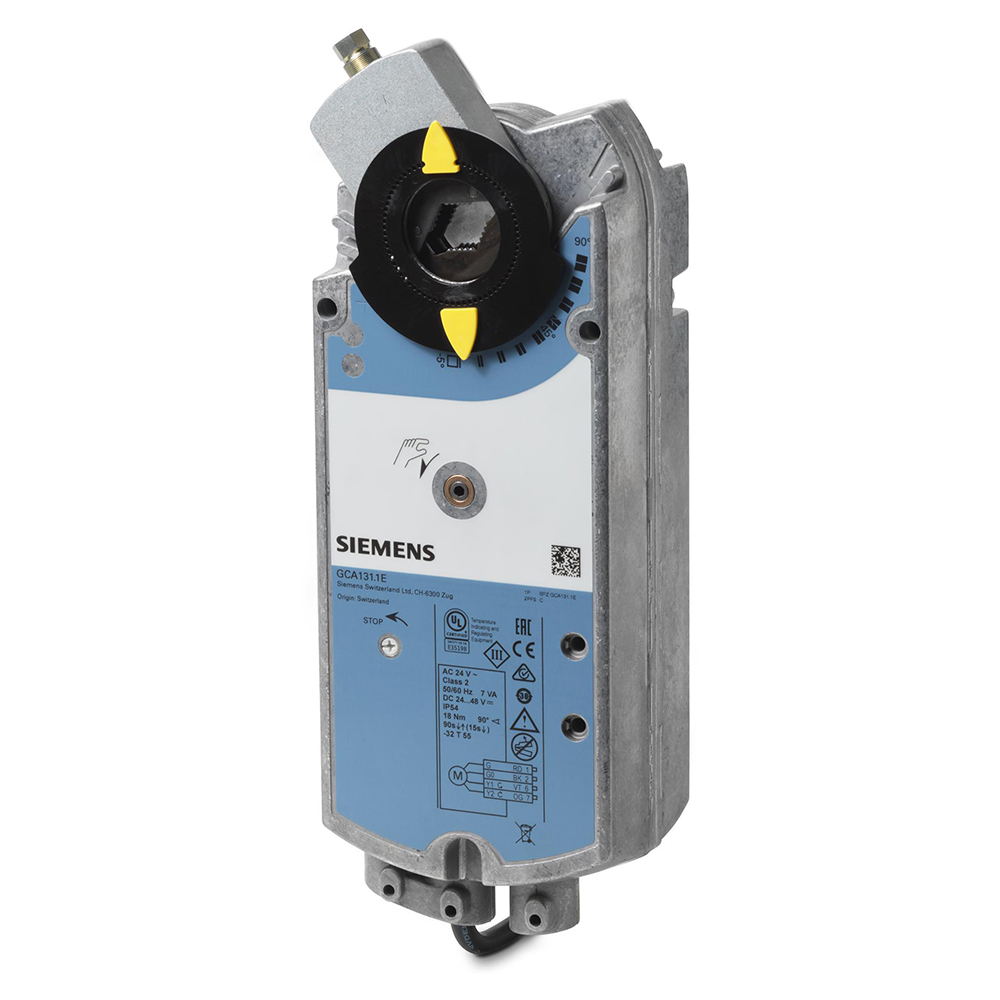

西門子 GCA系列 彈簧復歸風門驅動器 Siemens GMA Rotary damper actuators with spring return

請來信詢價

  • 德國品牌
  • OpenAir™ Air Damper Actuators for HVAC applications
  • GCA系列
  • 扭力18 Nm
  • 可用面積3 m²
  • 旋轉角度90 °
  • Positioning time Opening with motor: 90 s, Closing with spring: 15 s
  • 具備彈簧復歸功能
  • 保護等級IP54

描述

GCA..1E

Rotary air damper actuators 18 Nm, with spring return

  • With self-centering shaft adapter for shaft dia. 8…25.6 mm, square 6…18 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • Manual override
  • With housing made of die-cast aluminium and 0.9 m connecting cable

額外資訊

Air damper area

3 m²

Angular rotation

90 °

Positioning time

Opening with motor: 90 s,
Closing with spring: 15 s

Degree of protection

IP54

Medium temperature

-32…55 °C

Dimensions (W x H x D)

100 x 300 x 75 mm

Product No.

GCA121.1E, GCA126.1E, GCA131.1E, GCA132.1E, GCA136.1E, GCA161.1E, GCA163.1E, GCA164.1E, GCA166.1E, GCA321.1E, GCA326.1E
