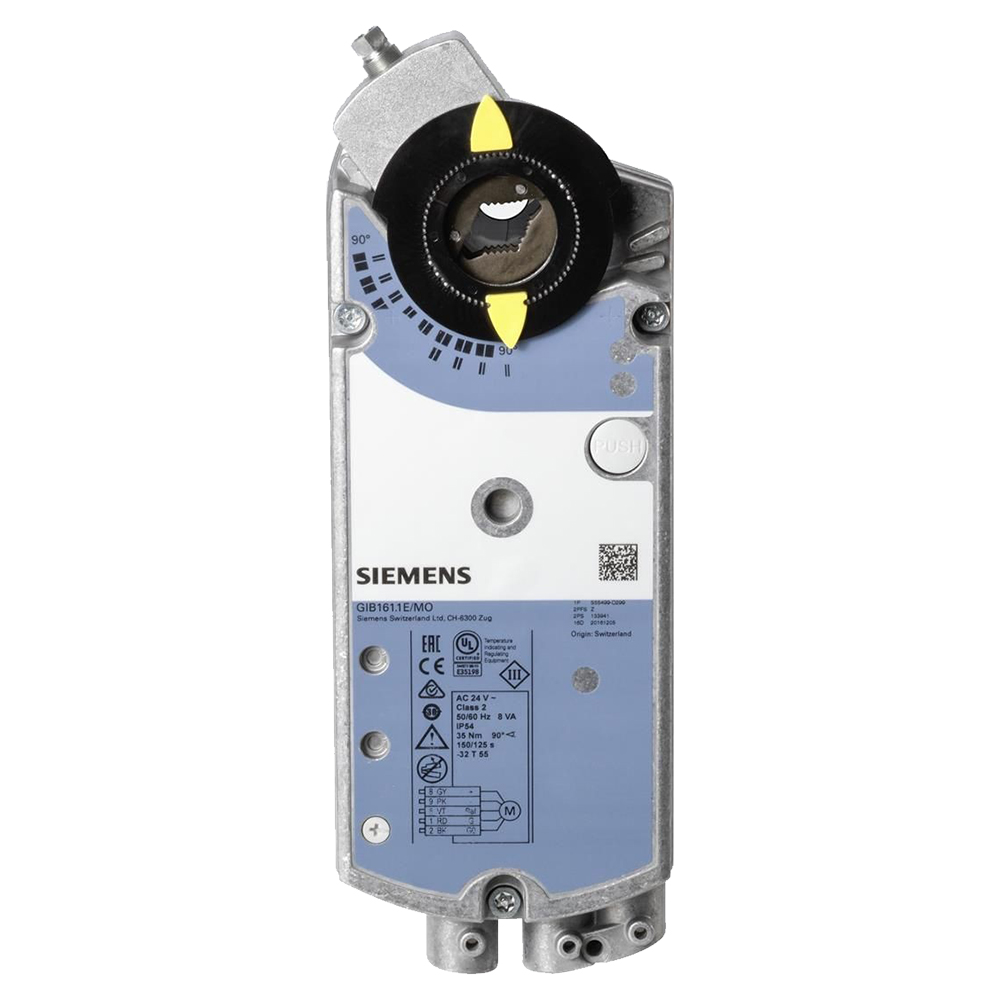

西門子 GIB系列 風門驅動器 Siemens GIB Series Air damper actuators

請詢價

  • 德國品牌
  • OpenAir™
  • Air Damper Actuators for HVAC applications
  • GIB series
  • 35 Nm for approx.
  • 6 m² damper area
  • 150 s running time
清除

描述

  • With self-centering shaft adapter for shaft dia. 8..25.6 mm, square 6…18 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • Button for disengaging the gear train to enable manual override
  • With housing made of die-cast aluminium and 0.9 m connecting cable



Siemens GIB OpenAir™ Air Damper Actuators

Product No.DescriptionOperating voltagePositioning signalPower consumptionAuxiliary switch
GIB131.1ERotary air damper actuator, AC 24 V, 3-position, 35 Nm, 150 sAC 24 V3-position 7 VA, 7 W0
GIB135.1ERotary air damper actuator, AC 24 V, 3-position, 35 Nm, 150 s, 2 auxiliary switches, potentiometerAC 24 V3-position 7 VA, 7 W2
GIB136.1ERotary air damper actuator, AC 24 V, 3-position, 35 Nm, 150 s, 2 auxiliary switchesAC 24 V3-position 7 VA, 7 W2
GIB161.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 35 Nm, 150 sAC 24 VDC 0...10 V8 VA, 8 W0
GIB163.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 35 Nm, 150 sAC 24 VDC 0…35 V, Adjustable 8 VA, 8 W0
GIB164.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 35 Nm, 150 s, 2 auxiliary switchesAC 24 VDC 0…35 V, Adjustable 8 VA, 8 W2
GIB166.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 35 Nm, 150 s, 2 auxiliary switchesAC 24 VDC 0...10 V8 VA, 8 W2
GIB331.1ERotary air damper actuator, AC 230 V, 3-position, 35 Nm, 150 sAC 230 V3-position 5 VA, 5 W0
GIB335.1ERotary air damper actuator, AC 230 V, 3-position, 35 Nm, 150 s, 2 auxiliary switches, potentiometerAC 230 V3-position 5 VA, 5 W2
GIB336.1ERotary air damper actuator, AC 230 V, 3-position, 35 Nm, 150 s, 2 auxiliary switchesAC 230 V3-position 5 VA, 5 W2

額外資訊

Torque

35.00 Nm

Air damper area

6.00 m²

Angular rotation

90 °

Positioning time

150 s

Degree of protection

IP54

Dimensions (W x H x D)

100 x 300 x 75 mm

Product No.

GIB131.1E, GIB135.1E, GIB136.1E, GIB161.1E, GIB163.1E, GIB164.1E, GIB166.1E, GIB331.1E, GIB335.1E, GIB336.1E
