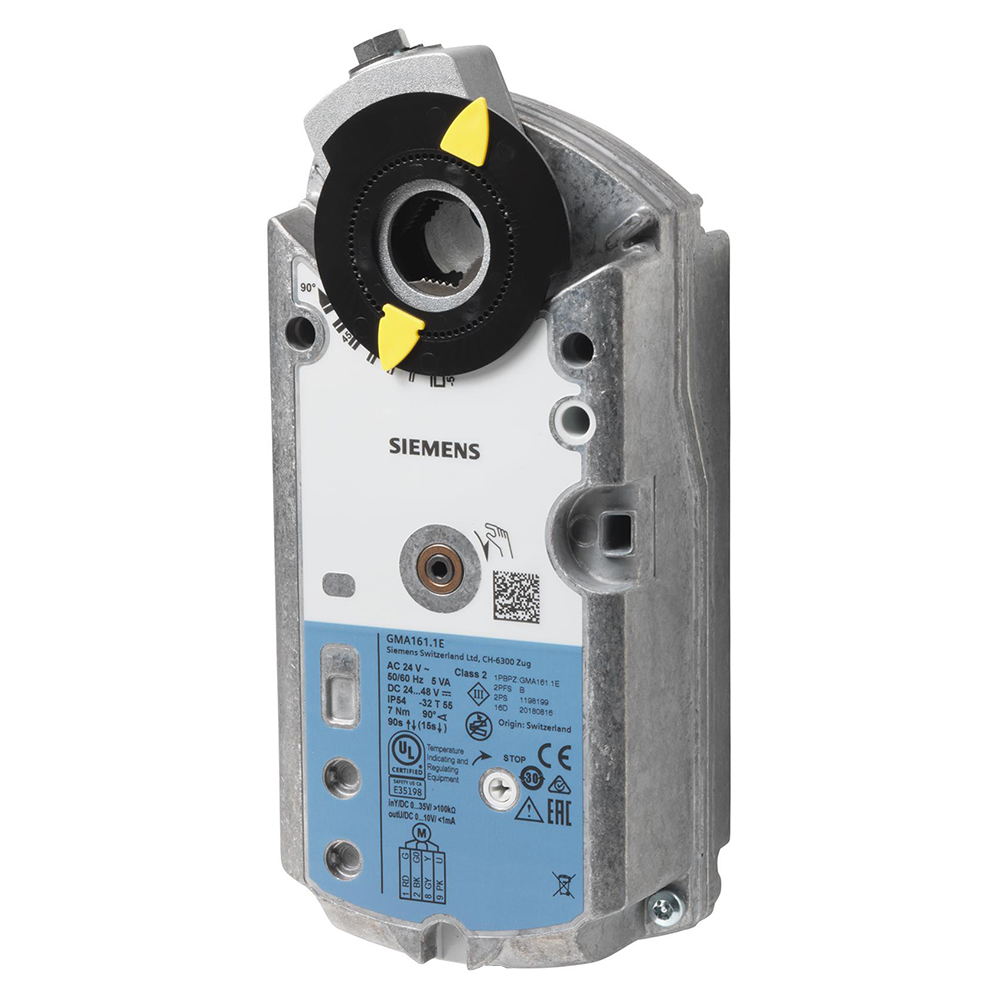

西門子 GMA系列 風門驅動器 Siemens GMA Series Air damper actuators GMA161.1E

西門子 GMA系列 彈簧復歸風門驅動器 Siemens GMA Series Air damper actuators, with spring return

請詢價

  • 德國品牌
  • OpenAir™ Air Damper Actuators for HVAC applications
  • GMA series
  • Torque 7 Nm
  • Air damper area 1.5 m²
  • Angular rotation 90 °
  • Positioning time Opening with motor: 90 s, Closing with spring: 15 s
  • Spring return function Yes
  • Degree of protection IP54
  • Ambient temperature, operation-32…55 °C
  • Dimensions (W x H x D) 81 x 192 x 63 mm
清除
貨號: Siemens-GMA-Series 分類: , , 標籤: , , ,

描述

GMA..1E

Rotary air damper actuators 7 Nm, with spring return

  • With self-centering shaft adapter for shaft dia. 6.4…20.5 mm, square 6.4…13 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • Manual override
  • With housing made of die-cast aluminium and 0.9 m connecting cable

Siemens GMA OpenAir™ Air Damper Actuators

Product No.DescriptionOperating voltagePositioning signalPower consumptionAuxiliary switch
GMA121.1ERotary air damper actuator, AC/DC 24 V, 2-position, 7 Nm, spring return 90/15 sAC 24 V, DC 24 V2-position 5 VA, 3.5 W0
GMA126.1ERotary air damper actuator, AC/DC 24 V, 2-position, 7 Nm, spring return 90/15 s, 2 auxiliary switchesAC 24 V, DC 24 V2-position 5 VA, 3.5 W2
GMA131.1ERotary air damper actuator, AC/DC 24 V, 3-position, 7 Nm, spring return 90/15 sAC 24 V, DC 24 V3-position 5 VA, 3.5 W0
GMA132.1ERotary air damper actuator, AC/DC 24 V, 3-position, 7 Nm, spring return 90/15 s, potentiometerAC 24 V, DC 24 V3-position 5 VA, 3.5 W0
GMA136.1ERotary air damper actuator, AC/DC 24 V, 3-position, 7 Nm, spring return 90/15 s, 2 auxiliary switchesAC 24 V, DC 24 V3-position 5 VA, 3.5 W2
GMA161.1ERotary air damper actuator, AC/DC 24 V, DC 0…10 V, 7 Nm, spring return 90/15 sAC 24 V, DC 24 VDC 0...10 V5 VA, 3.5 W0
GMA163.1ERotary air damper actuator, AC/DC 24 V, DC 0…35 V adjustable, 7 Nm, spring return 90/15 sAC 24 V, DC 24 VDC 0…35 V, Adjustable 5 VA, 3.5 W0
GMA164.1ERotary air damper actuator, AC/DC 24 V, DC 0…35 V adjustable, 7 Nm, spring return 90/15 s, 2 auxiliary switchesAC 24 V, DC 24 VDC 0…35 V, Adjustable 5 VA, 3.5 W2
GMA166.1ERotary air damper actuator, AC/DC 24 V, DC 0…10 V, 7 Nm, spring return 90/15 s, 2 auxiliary switchesAC 24 V, DC 24 VDC 0...10 V5 VA, 3.5 W2
GMA321.1ERotary air damper actuator, AC 230 V, 2-position, 7 Nm, spring return 90/15 sAC 230 V2-position 7 VA, 4.5 W0
GMA326.1ERotary air damper actuator, AC 230 V, 2-position, 7 Nm, spring return 90/15 s, 2 auxiliary switchesAC 230 V2-position 7 VA, 4.5 W2

額外資訊

Air damper area

1.50 m²
Angular rotation

90 °
Positioning time

Opening with motor: 90 s, Closing with spring: 15 s
Degree of protection

IP54
Medium temperature

-32…55 °C
Dimensions (W x H x D)

81 x 192 x 63 mm
Product No.

GMA121.1E, GMA126.1E, GMA131.1E, GMA132.1E, GMA136.1E, GMA161.1E, GMA163.1E, GMA164.1E, GMA166.1E, GMA321.1E, GMA326.1E
