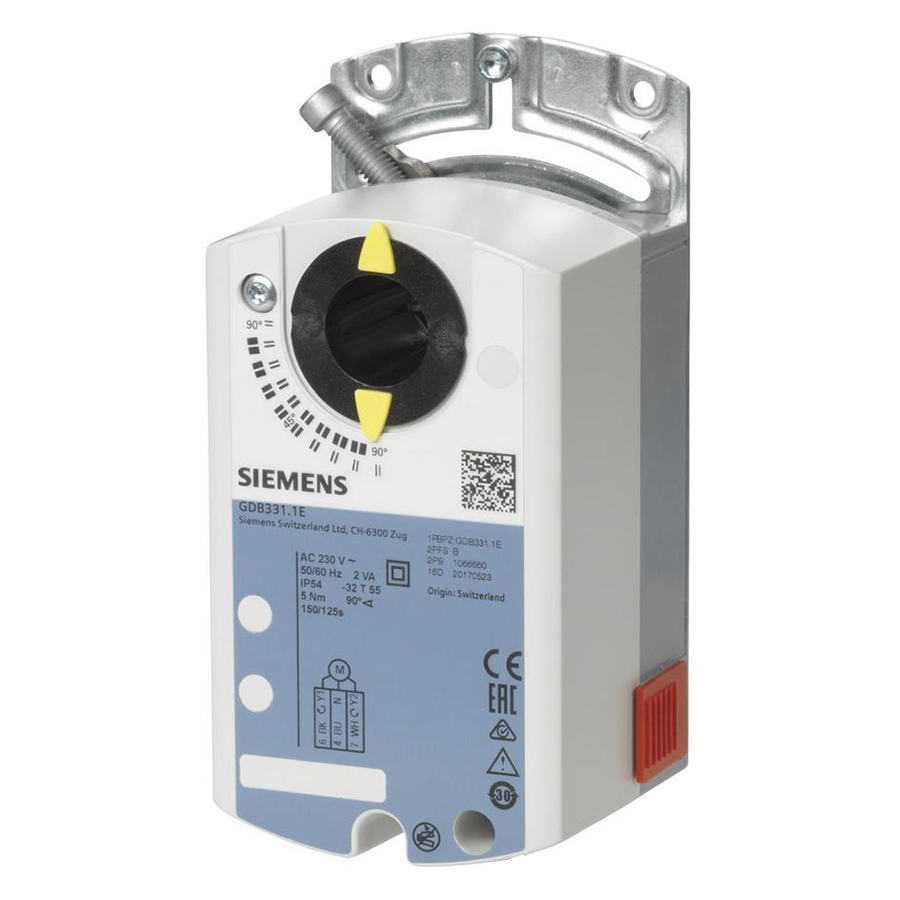

西門子 GDB系列 風門驅動器 Siemens GDB Series Air damper actuators

請詢價

  • 德國品牌
  • OpenAir™
  • Rotary damper actuators without spring return
  • GDB series
清除

描述

  • Electronic motor driven actuators for three-position and modulating control
  • Nominal torque 5 Nm (GDB), 10 Nm (GLB)
  • Mechanically adjustable span between 0…90°
  • Pre-wired with 0.9 m long connection cables
  • Type-specific variations with adjustable offset and span for the positioning signal
  • Position indicator
  • Feedback potentiometer
  • Self-adaption of rotational angle range and adjustable auxiliary switches for supplementary functions

Siemens GDB OpenAir™ Air Damper Actuators

Product No.DescriptionOperating voltagePositioning signalPower consumptionAuxiliary switch
GDB131.1ERotary air damper actuator, AC 24 V, 3-position, 5 Nm, 150 sAC 24 V3-position 2 VA, 1 W0
GDB132.1ERotary air damper actuator, AC 24 V, 3-position, 5 Nm, 150 s, potentiometerAC 24 V3-position 2 VA, 1 W0
GDB136.1ERotary air damper actuator, AC 24 V, 3-position, 5 Nm, 150 s, 2 auxiliary switchesAC 24 V3-position 2 VA, 1 W2
GDB161.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 5 Nm, 150 sAC 24 VDC 0...10 V3 VA, 2 W0
GDB163.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 5 Nm, 150 sAC 24 VDC 0…35 V, Adjustable 3 VA, 2 W0
GDB164.1ERotary air damper actuator, AC 24 V, DC 0…35 V adjustable, 5 Nm, 150 s, 2 auxiliary switchesAC 24 VDC 0…35 V, Adjustable 3 VA, 2 W2
GDB166.1ERotary air damper actuator, AC 24 V, DC 0…10 V, 5 Nm, 150 s, 2 auxiliary switchesAC 24 VDC 0...10 V3 VA, 2 W2
GDB331.1ERotary air damper actuator, AC 230 V, 3-position, 5 Nm, 150 sAC 230 V3-position 2 VA, 1 W0
GDB332.1ERotary air damper actuator, AC 230 V, 3-position, 5 Nm, 150 s, potentiometerAC 230 V3-position 2 VA, 1 W0
GDB336.1ERotary air damper actuator, AC 230 V, 3-position, 5 Nm, 150 s, 2 auxiliary switchesAC 230 V3-position 2 VA, 1 W2

額外資訊

Torque

5.00 Nm

Air damper area

0.80 m²

Angular rotation

90 °

Positioning time

150 s

Cable Length

0.90 m

Degree of protection

IP54

Medium temperature

-32…55 °C

Dimensions (W x H x D)

68 x 137 x 59.5 mm

Product No.

GDB131.1E, GDB132.1E, GDB136.1E, GDB161.1E, GDB163.1E, GDB164.1E, GDB166.1E, GDB331.1E, GDB332.1E, GDB336.1E
