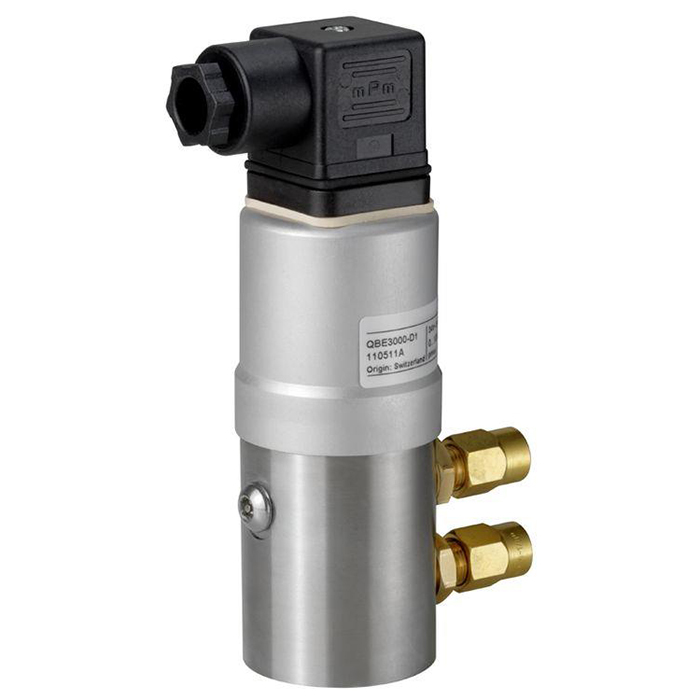

西門子 QBE3000/QBE3100系列 壓差感測器 Siemens Differential Pressure Sensor QBE3000-D../QBE3100-D..

請來信詢價

  • Siemens HVAC Products
  • 適用於中性溫和液體/氣體
  • 陶瓷測量裝置
  • 可用AC 24 V / DC 18…33 V 或 DC 11…33 V
  • 輸出訊號可選擇DC 0…10 V output signal 或 DC 4…20 mA

描述

Differential pressure sensor, suitable for gases or liquids, for the measurement of pressure differentials in HVAC systems.

  • Ceramic measuring system
  • Robust construction for highly reliable operation
  • For neutral and mildly corrosive liquids and gases
  • Supply voltage AC 24 V / DC 18…33 V or DC 11…33 V
  • DC 0…10 V output signal or DC 4…20 mA
  • Male-threaded G1/8″ connection
  • Delivery includes 2 screwed fittings for copper pipes, 6 mm diameter
For slightly aggressive liquids and gases. With threaded connections G1/8″.
Including mounting bracket and 2 screwed fittings for copper pipe, 6 mm dia.
*Not suitable for use with ammonia or freones.

Siemens Differential Pressure Sensor QBE3000-D../QBE3100-D..

Product#Pressure Range(bar)(MPa)Output signal
QBE3000-D10...10...0.1DC 0...10 V
QBE3000-D1.60...1.60...0.16DC 0...10 V
QBE3000-D2.50...2.50...0.25DC 0...10 V
QBE3000-D40...40...0.4DC 0...10 V
QBE3000-D60...60...0.6DC 0...10 V
QBE3000-D100...100...1DC 0...10 V
QBE3000-D160...160...1.6DC 0...10 V
QBE3100-D10...10...0.1DC 4...20 mA
QBE3100-D1.60...1.60...0.16DC 4...20 mA
QBE3100-D2.50...2.50...0.25DC 4...20 mA
QBE3100-D40...40...0.4DC 4...20 mA
QBE3100-D60...60...0.6DC 4...20 mA
QBE3100-D100...100...1DC 4...20 mA
QBE3100-D160...160...1.6DC 4...20 mA

額外資訊

Product No.

QBE3000-D1, QBE3000-D1.6, QBE3000-D2.5, QBE3000-D4, QBE3000-D6, QBE3000-D10, QBE3000-D16, QBE3100-D1, QBE3100-D1.6, QBE3100-D2.5, QBE3100-D4, QBE3100-D6, QBE3100-D10, QBE3100-D16

Operating voltage

QBE3000: AC 24 V, DC 18…33 V
QBE3100: DC 11…33 V

Analog output, signal

QBE3000: DC 0…10 V
QBE3100: DC 4…20 mA

Pressure conneciton

Internal thread G 1/8 "

Connection, electrical

Plug-in connection

Medium temperature

-15…80 °C

Degree of protection

IP65
