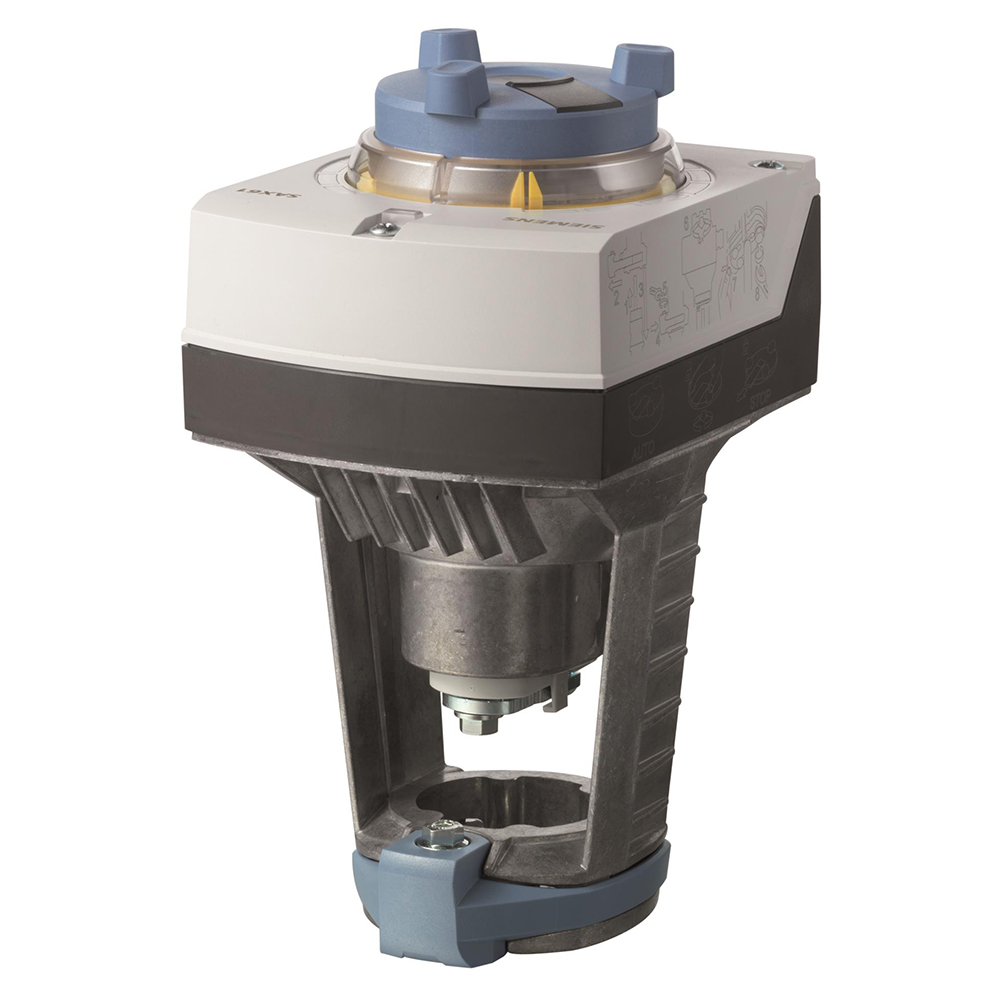

西門子 SAX系列 電動閥驅動器 Siemens Electromotoric Actuator SAX…

請詢價

  • 德國品牌
  • Siemens Electromotoric Actuators 800 N for valve with 20 mm stroke
  • 電動閥驅動器
  • 800N
  • 20mm stroke
  • 適用於Siemens VVF, VVG, VXF, VXG系列閥體
  • 各式型號歡迎詢問
清除

描述

  • Electromotoric actuator for the operation of Siemens 2-port and 3-port valves, types VVF.., VVG.., VXF.. and VXG..
  • with 20 mm stroke as control and safety shut-off valves in heating, ventilation and air conditioning systems.
  • With manual adjuster and position indicator, status indication per LED.
  • Optional functions with auxiliary switches, potentiometer, functional module and stem heater.



Siemens Globe Valves and Actuators

Siemens Globe Valves and Actuators

額外資訊

Positioning Force

800N

Stroke

20mm

Ambient temperature, operation

IP54

Medium temperature

-5…55 °C

Mounting position

-25…130 °C

Position feedback

DC 0…10 V (SA..6..)

Model

SAX31.00, SAX31.03, SAX61.03, SAX81.00, SAX81.03
