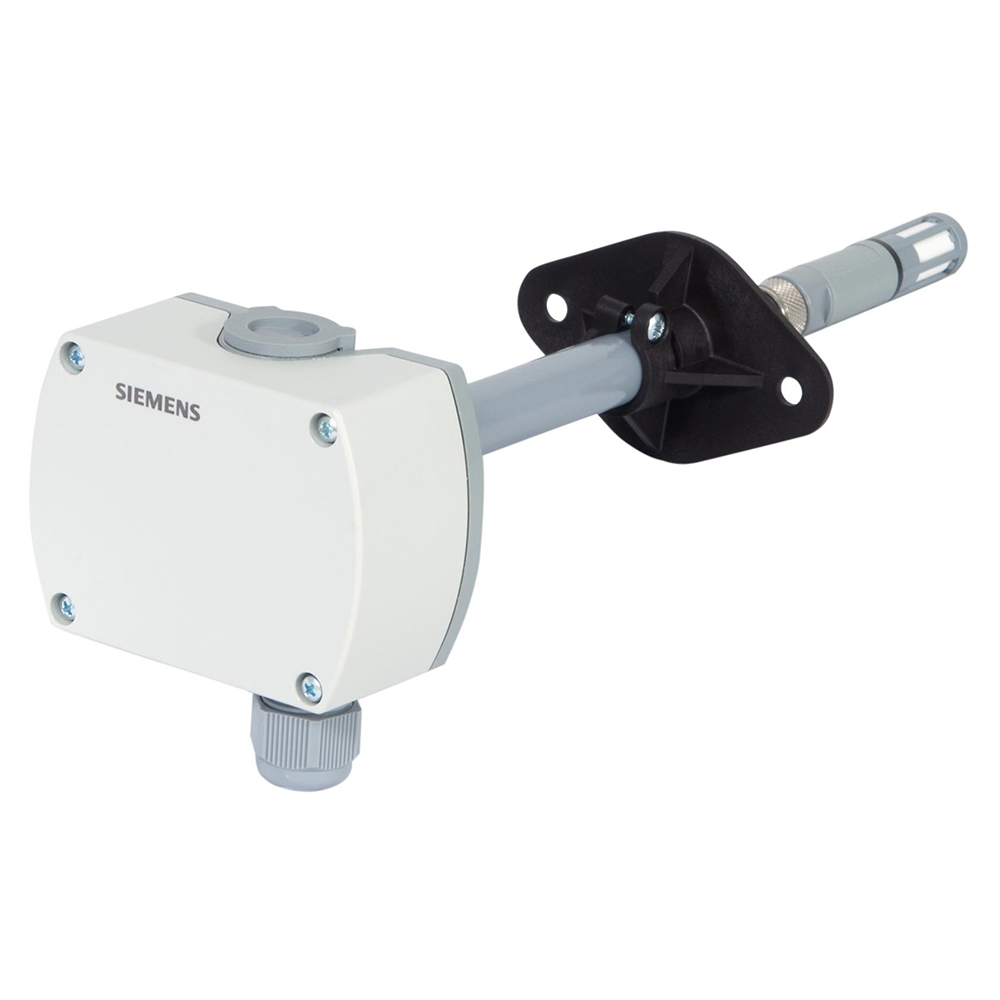

西門子 QFM21系列 風管型溫濕度感測器 Siemens QFM21… Duct Sensor for Rel. Humidity/Temperature

請詢價

  • 德國品牌
  • 溫度感測範圍:0…50 °C,  -35…35 °C,  -40…70 °C
  • 濕度感測範圍:0…100 % RH
  • Assembled in Switzerland
清除

描述

  • Siemens HVAC Products
  • Symaro™ Duct sensors
  • For relative humidity and temperature
  • Operating voltage AC 24 V / DC 13.5…35 V
  • Signal output DC 0…10 V / 4…20 mA for relative humidity
  • Signal output DC 0…10 V / 4…20 mA / T1 / LG-Ni 1000 for temperature
  • Measuring accuracy ± 3 % r. h. within the comfort range
  • Range of use -15…+60 °C / 0…95 % r. h. (non-condensing)

Siemens QFM21... Duct Sensor for Rel. Humidity/Temperature

Product no.DescriptionSignal output (humidity)Signal output (temperature)Operating voltageMeasuring range, temperature
QFM2100Duct sensor for humidity (DC 0...10 V)DC 0...10 V-AC 24 V,
DC 13.5...35 V
-
QFM2101Duct sensor for humidity (DC 4...20 mA)DC 4...20 mA-DC 13.5...35 V-
QFM2120Duct sensor for humidity (0...10 V) and temperature (Ni1000)DC 0...10 VLG-Ni1000 AC 24 V,
DC 13.5...35 V
0...50 °C,
-35...35 °C,
-40...70 °C
QFM2160Duct sensor for humidity (DC 0...10 V) and temperature (DC 0...10 V)DC 0...10 VDC 0...10 VAC 24 V,
DC 13.5...35 V
0...50 °C,
-35...35 °C,
-40...70 °C
QFM2171Duct sensor for humidity (DC 4...20 mA) and temperature (DC 0...20 mA)DC 4...20 mADC 4...20 mADC 13.5...35 V0...50 °C,
-35...35 °C,
-40...70 °C



額外資訊

Measurement range humidity

0…95 % R.H.

Measurement accuracy

Humidity at 30…70 % r.h. and 23 °C: ±3 % r.h.,
Temperature, at 15…35 °C: ±0.8 K,
Temperature, at 35…50 °C: ±1.0 K

Time constant

Humidity: <20 s,
Temperature in with 2 m/s moved air: <3.5 min

Immersion length

90…154 mm

Connection, electrical

Screw terminals

Type of fixing

Flange

Analog output signal

DC 0…10 V,
DC 4…20 mA

Degree of protection

IP54

Dimensions (W x H x D)

80 x 88 x 39 mm

Product No.

QFM2100, QFM2101, QFM2120, QFM2160, QFM2171
