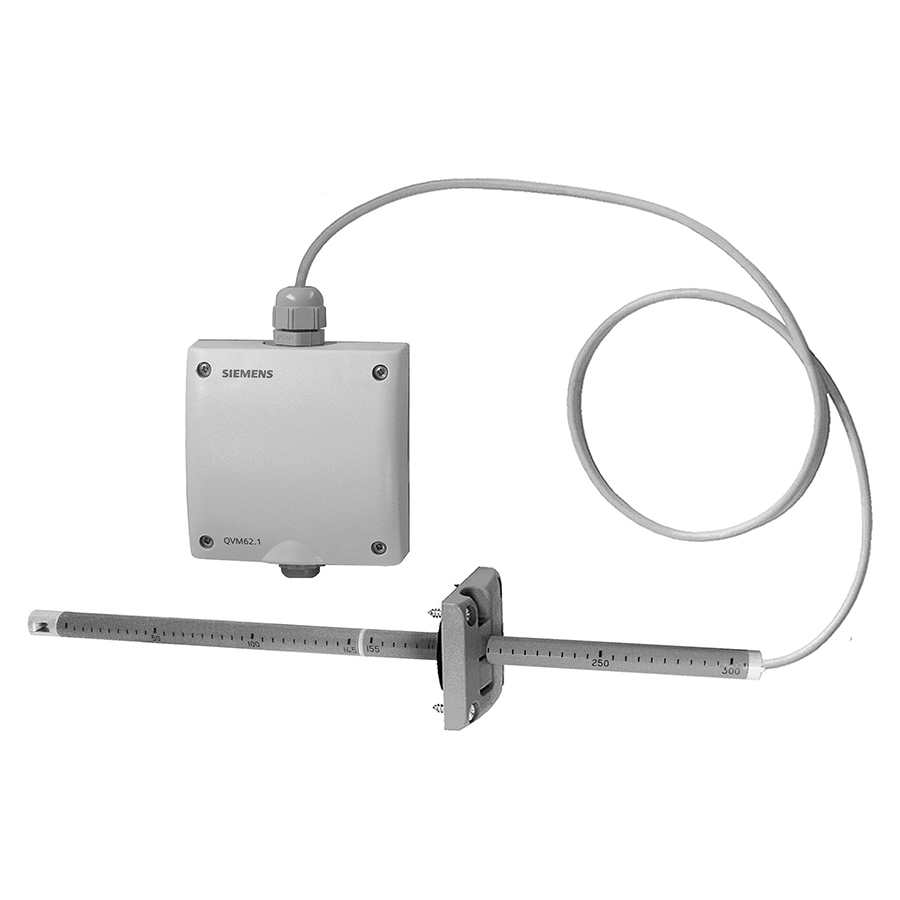

西門子 風管型風速感測器 Siemens Duct sensor for air velocity QVM62.1

請來信詢價

  • 德國品牌
  • 風管型風速感測器
  • 風速範圍可選0…5 m/s, 0…10 m/s, 0…15 m/s.
  • 傳送訊號可選4…20mA or 0…10V



描述

This sensor is used to control the air velocity to a constant value, or to balance out pressure fluctuations (supply or extract air control), or to monitor the flow in air ducts.
It primarily is used for modulating fan control in primary plants to set the basic volume flow.

The QVM62.1 records the air velocity as a measured value and converts it to an active DC 0…10 V or 4…20 mA output signal.
Three measuring ranges are available:
0…5 m/s, 0…10 m/s, and 0…15 m/s.
The sensor measures a point, i.e., it measures the values at a specific location in the flow profile. For recording the mean air velocity in the duct, the sensor’s immersion depth is the key measure. The immersion depth depends on the flow profile.
The measurement principle is based on the anemometric measurement principle.
The specially developed thin film sensing element of the QVM62.1 is to a big extend independent form the flow direction and is nearly insensitive to any kind of dirt in the airflow.

額外資訊

Operating voltage

AC 230 V

Power consumption

0.5 VA

Measured variable

Mixed gas (VOC)

Digital outputs

Non-floating , Switching contact

Digital output, switching current

8 (6.8) A

Digital output, switching voltage

AC 230 V

Connection, electrical

Screw terminals

Degree of protection

IP30

Dimensions (W x H x D)

96 x 101 x 39 mm
