CPS 6CFM 1/2HP 2段式可調電壓 真空幫浦 Pro-Set Vacuum Pump

請來信詢價

  • CPS 真空幫浦
  • 美國品牌
  • Made in USA
  • 6CFM
  • 1/2HP
  • 可切換110V/220V
  • 抽真空程度可達100 microns
  • 進階式空冷馬達可在較高溫(52 °C)下運作
  • 進氣球閥構造可縮短抽真空時間
  • 不會產生油霧
  • 可用接口: 1/4″, 3/8″ and 1/2″ ACME
  • 橡膠基底防止震動
  • 大視窗油量指示
貨號: VP6D 分類: 標籤: , ,

描述

Description

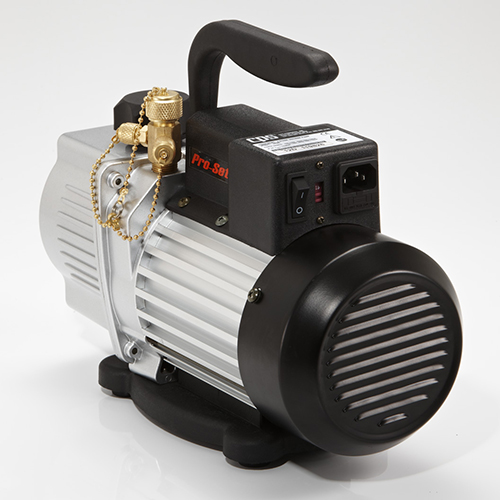

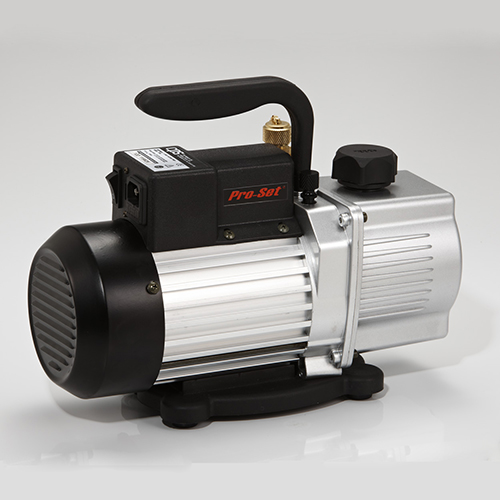

The VP6D Pro-Set® Premium Series vacuum pump is a 6 CFM, 2 stage unit with a versatile dual voltage 1 / 2 HP motor. The unit boasts the same high quality , high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.

Item Features

  • Dual voltage operation 110-120V / 220V 50 / 60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for 1/4″, 3/8″ and 1/2″ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
  • Solid rubber base provides extreme shock resistance
  • Sure grip handle ergonomically designed for superior comfort and portability

額外資訊

Power:

110V-120V /220V 50 / 60 Hz USA plug

Stage:

2

Motor Size (HP) RPM @ 50 / 60 Hz:

1 / 2 (HP) 2880 / 3440 RPM

Dimensions:

13.1" x 5.5" x 10"

Weight:

22.5 lb / 10.2 kg

Operating Temperature Range:

0 °C (32 °F) to 52 °C (125 °F)

Ultimate Vacuum:

as low as 100 microns

Oil Capacity:

14 oz / 400 ml

Overload Protection:

Motor thermally protected, dual voltage units have extra IEC fuse

Control System:

On-off power switch

Free Air Displacement:

6 CFM @ 60 Hz, 144 l / m @ 50 Hz

Intake Fittings:

1 / 4" SAE, 3 / 8" SAE and 1 / 2" ACME
