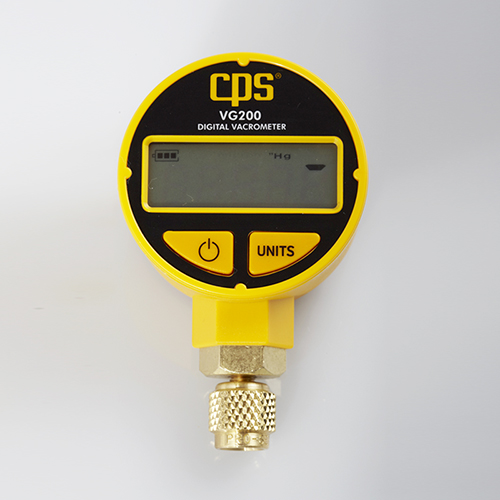

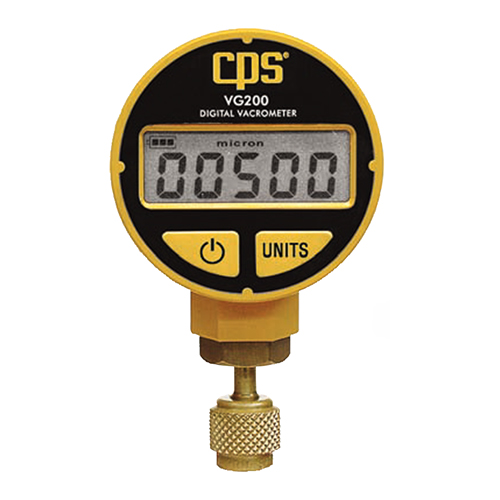

CPS 液晶顯示 真空表 VG200 VACROMETER Digital Vacuum Gauge

請來信詢價

  • CPS 液晶顯示真空表
  • 美國品牌
  • Made in USA
  • 大液晶螢幕可精確顯示讀數
  • 精確度±10 % 讀數
  • 獨特電路設計可自動偵測溫度變化
  • 可切換單位Microns, Torr, in/hg or mBar
  • 附攜帶包/掛鉤/轉接頭
  • 最大工作壓力: 600PSIG (~41 bar)
  • Burst Pressure: 3000PSIG
  • 請注意本款產品只會在25000 ~ 0 microns之間顯示精準讀數, 其餘範圍只會以長條圖表示
  • 本產品為精密儀器, 如摔落地面或是管內壓力過高超出保護範圍導致感測器損壞則無法維修

描述

FEATURES
  • Individually calibrated to strict NIST standards with accuracy of ± 10 % of reading
  • Incorporates surface mount technology for exceptional performance and reliability
  • Advanced circuit design automatically compensates for ambient temperature changes
  • Selectable measurement units in Microns, Torr, in/hg or mBar
  • Field cleanable sensor with extended range from atmosphere down to 0 microns

額外資訊

SENSOR TYPE

Self-heated thermistor bridge with integral temperature compensation from 0 to 50 °C (32 to 122 °F)

OPERATING PRESSURE RANGE

Atmospheric pressure to 0 microns.
Maximum Working pressure: 400 PSIG

BURST PRESSURE

3000 PSIG

OPERATING RANGE

Atmospheric to 0 microns

ACCURACY

+/- 10% of Reading

OPERATING TEMPERATURE RANGE

Compensated (accuracy as stated): 0°C TO 50°C (32°F TO 122°F)
Non-compensated (add +/- 0.5% error for every °C outside compensated range): 0 to 50°C (-22 to 158°F)

OPERATING & STORAGE HUMIDITY

0-95%, non-condensing

STORAGE TEMPERATURE

-40 to 185°F / -40 to 85°C

POWER SOURCE

One 9 volt alkaline battery (included)

BATTERY LIFE

30 hours of continuous use.
Auto-off after 10 minutes

WEIGHT

5.5 oz. / 153 g. excluding the battery

DIMENSIONS

68 mm. diameter by 40 mm. deep by 124 mm. overall height (2.7" dia. by 1.6" deep by 5" overall height)

MECHANICAL CONNECTION

Standard 1/4" female SAE refrigerant hose type with core depressor

BATTERY INDICATOR

Battery symbol with 3 segment Power Level Bar Graph
