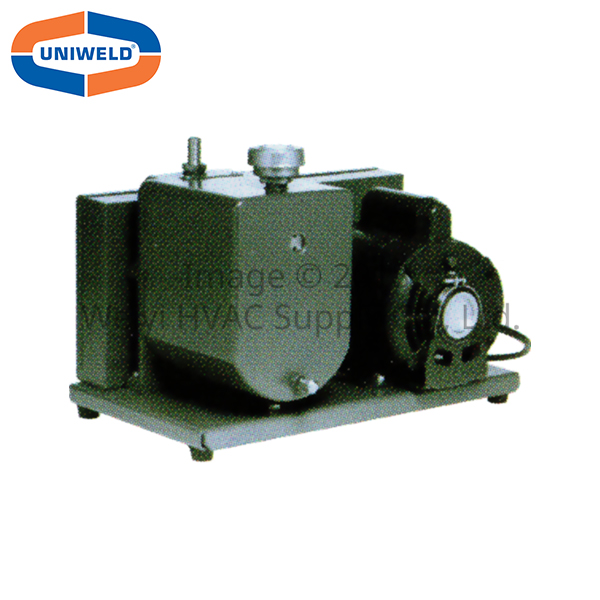

UNIWELD VBD-B30 皮帶式傳動真空幫浦 10CFM Belt Drive Vacuum Pump

請來信詢價

  • 美國品牌真空幫浦
  • 皮帶式架構
  • Made in USA
  • 10CFM
  • 3/4HP
  • 115-230V/60Hz
  • 經典型設計/高耐用度
  • 專用於工業以及實驗室應用
貨號: VBD-B30 分類: 標籤: , , ,

描述

Description

UNIWELD VBD-Series pumps are specifically designed for both industrial and laboratory applications. The belt drive design makes it the best of mechanical rotary sliding vane pumps with respect to ultimate vacuums, pumping speeds, long-life, efficiency and ease of maintenance. Compound stage pumps provide ultimate deep vacuums and are factory tested to levels of 10 microns. All units have a larger than normal oil reservoir, that assures extended pumping efficiency with fewer oil changes. Time tested and proven to be a quality vacuum pump.



額外資訊

Stage:

2

Motor Size (HP) RPM @60Hz:

3/4(HP) 1300RPM@60Hz

Dimensions (Inches):

16 x 13.5 x 12

Weight:

87 lb / 39.4 kg

Power Source:

115-230V/60Hz

Ultimate Vacuum:

as low as 10 Microns

Oil Capacity:

27 oz / 1360 ml

Control System:

ON-OFF power switch

Free Air Displacement:

10 CFM @ 60Hz, 285L/min @ 60Hz

Intake Fittings:

3/4"
