CPS 10CFM 3/4HP 2段式可調電壓 真空幫浦 Pro-Set Vacuum Pump


  • CPS 真空幫浦
  • 美國品牌
  • Made in USA
  • 10CFM
  • 3/4HP
  • 可切換110V/220V
  • 抽真空程度可達10 microns
  • 進階式空冷馬達可在較高溫(52 °C)下運作
  • 進氣球閥構造可縮短抽真空時間
  • 不會產生油霧
  • 過載保護: 馬達過熱偵測, 雙電壓切換內建保險絲
  • 橡膠基底防止震動
  • 大視窗油量指示
  • 可用接口: 1/4″, 3/8″ and 1/2″ ACME
貨號: VP10D 分類: 標籤: , ,

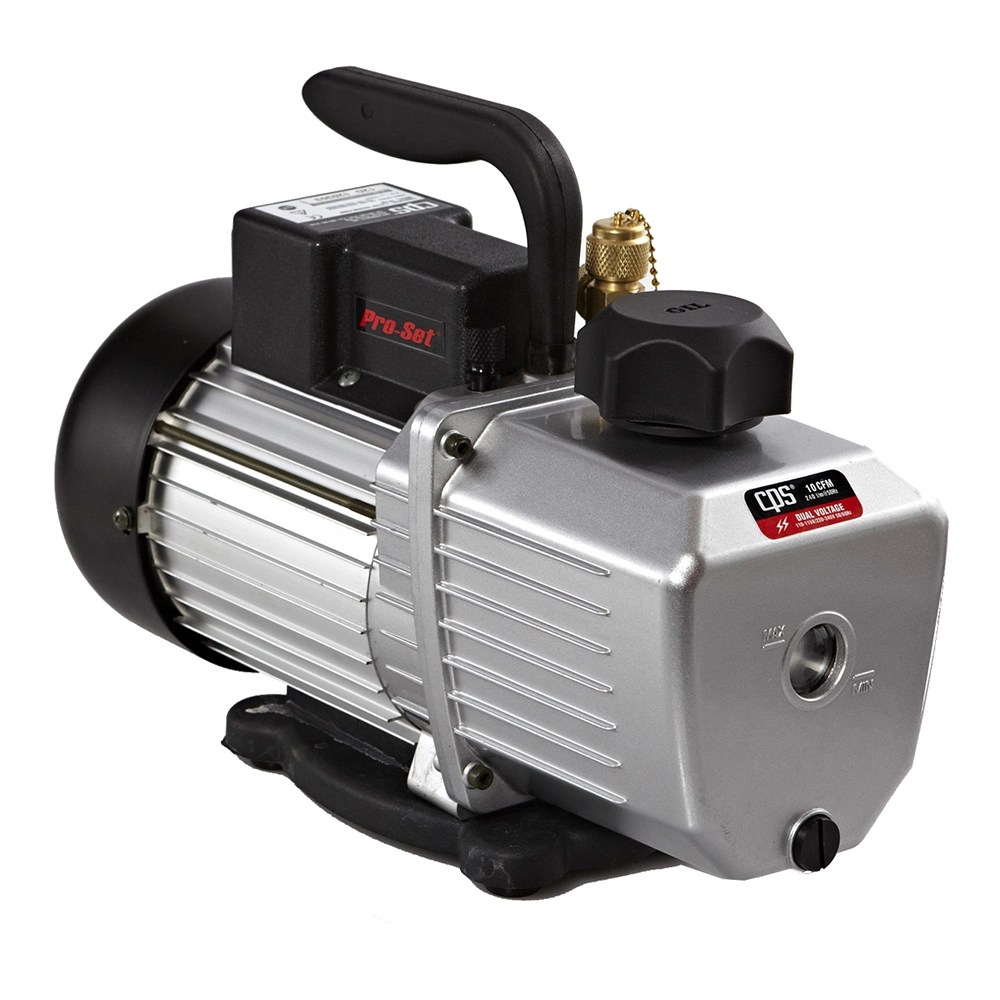

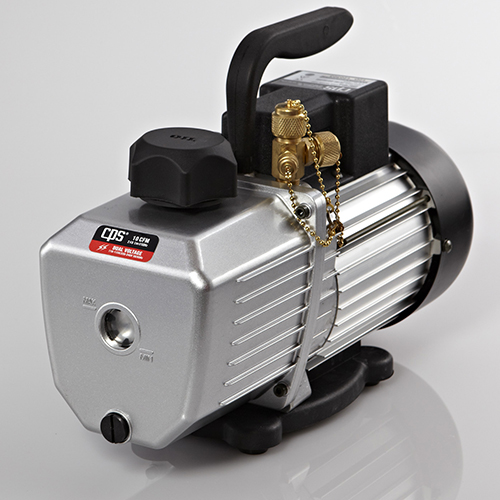

The VP10D Pro-Set® vacuum pump is a powerful 10 CFM, 2 stage unit with a versatile dual voltage 3/4HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service

Key Features

  • Dual voltage operation 110-120V / 220V 50/60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns

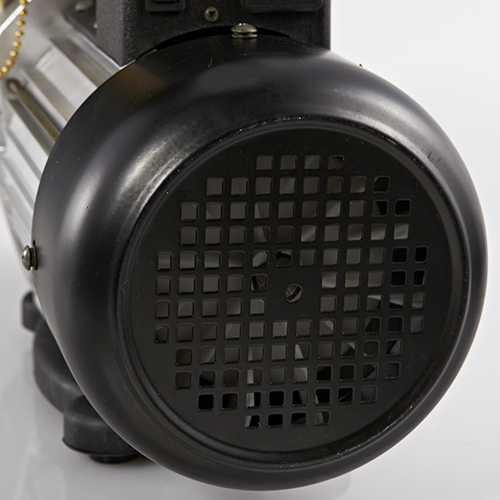

  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for ¼”, ⅜” and ½” ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
  • Solid rubber base provides extreme shock resistance
  • Sure grip handle ergonomically designed for superior comfort and portability




Motor Size (HP) RPM @ 50/60Hz:

3/4 (HP) 2880 / 3440

Dimensxions (Inches):

14.9 x 5.7 x 10.6


30.3 lb / 13.7kg

Operating Temperature Range:

0˚C (32˚F) to 52˚C (125˚F)

Power Source:

110-120V / 220V 50/60Hz

Ultimate Vacuum:

as low as 10 Microns

Oil Capacity:

28 oz / 830 ml


Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle

Overload Protection:

Motor Thermally Protected, Dual Voltage units have extra IEC fuse

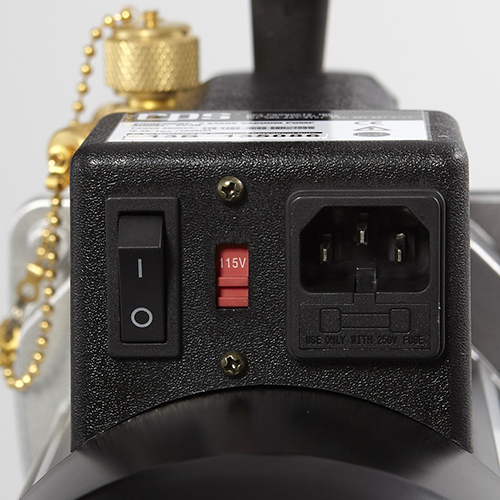

Control System:

ON-OFF power switch

Free Air Displacement:

10 CFM @ 60Hz, 240l/m @ 50Hz

Intake Fittings:

1/4, 3/8 and 1/2 SAE

Gas Ballast Valve:
