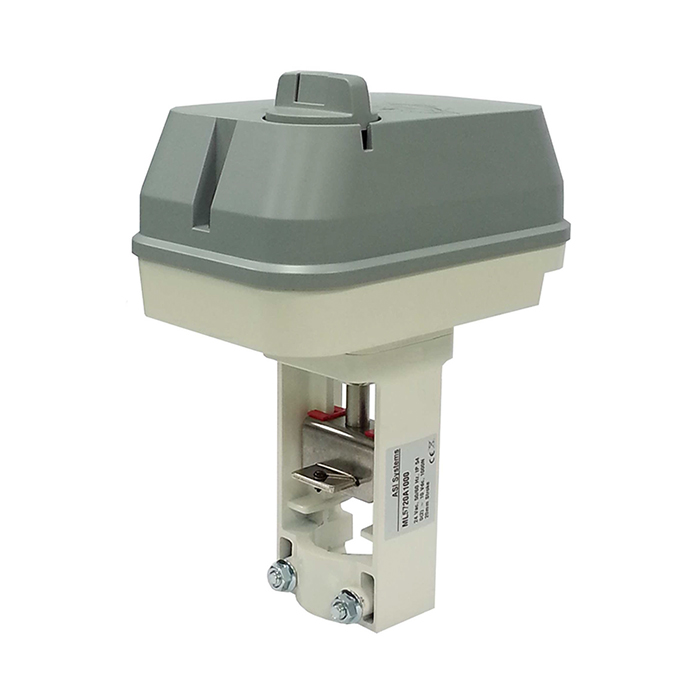

ASI Systems ML5720A Electric Linear Valve Actuators

ML5720A 驅動馬達 ASI Systems ML5720A Electric Linear Valve Actuators

請來信詢價

  • 美國品牌
  • ML5720A0500
  • ML5720A1000
  • 操作簡易
  • 不需額外安裝連結桿於閥座上
  • 手動旋鈕
貨號: ML5720A1000 分類: , , , 標籤: , , ,

描述

APPLICATION
The ML5720A series actuators operate standard ASI Systems valves in heating, ventilating and air conditioning (HVAC) applications. The ML5720A series actuators modulating operated for:

  • 2-way or 3-way valve
  • Chilled water, hot water or steam valve
ASI Systems ML5720A Electric Linear Valve Actuators

ASI Systems ML5720A安裝示意圖

額外資訊

Supply Voltage

24 Vac ±15%; 50/60 Hz
Power consumption

7 VA
Signal input

0…10 Vdc or 2…10 Vdc (4 to 20 mA)
Stem Force

ML5720A0500: 500N
ML5720A1000: 1000N
Actuator stroke

Free Stroke (Auto adapted): 10…30 mm
Run Time for 20 mm Stroke

30 seconds
Position Feedback Signal

0 to 5 Vdc, 1 mA maximum
Weight

ML5720A0500: 1.5 kg
ML5720A1000: 2.1 kg
