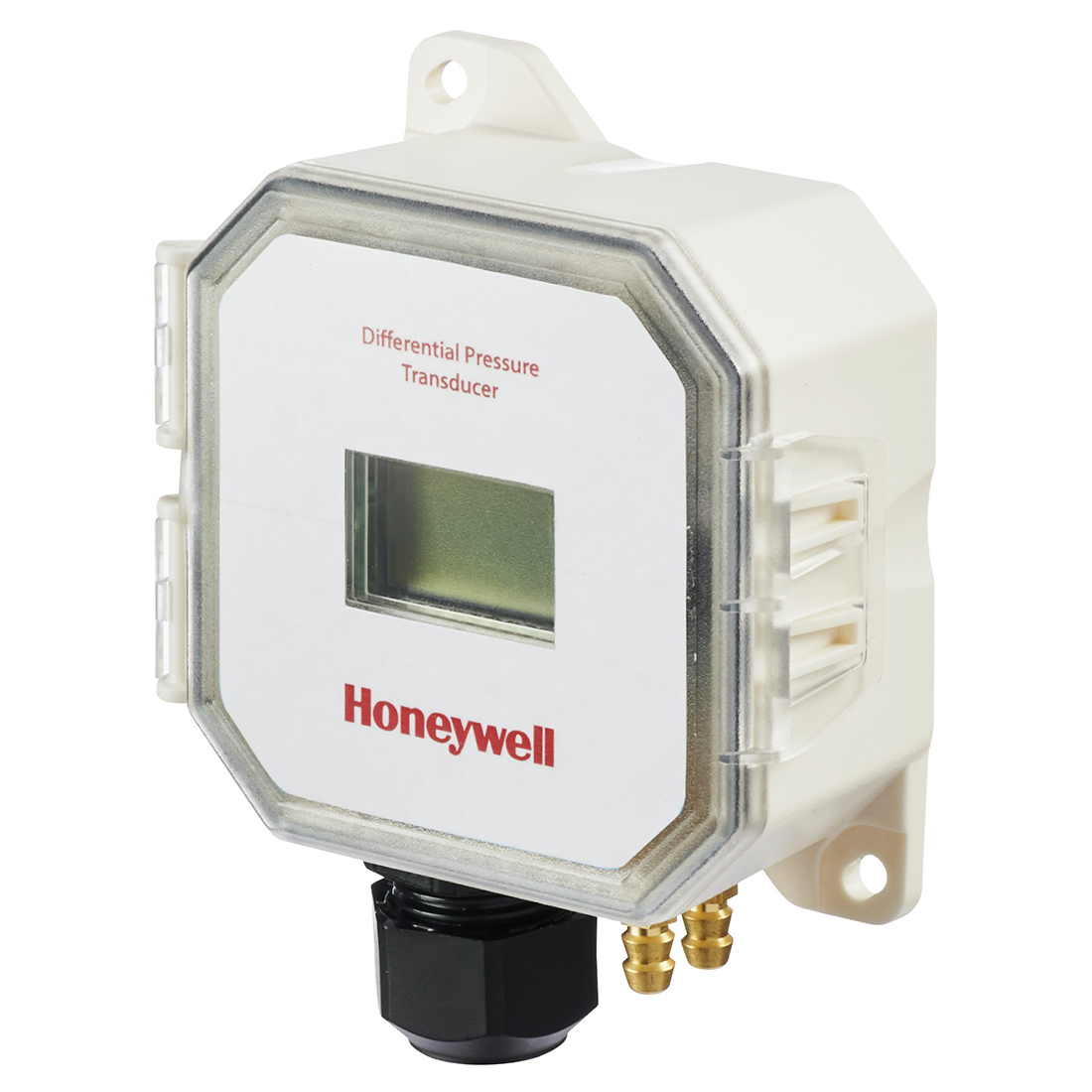

漢威 P7650A/U 壓差感測器 Honeywell Differential Pressure Sensors

請來信詢價

描述

Reduce field failures
– Excellent tolerance to overpressure & vibration reduces field failures
Reduce setup
– Selectable ranges and scales reduce setup time and number of models to stock
High accuracy
– High accuracy digital sensor with seven selectable sub-ranges maintains calibration and reduces callbacks
Water-resistant housing
– IP65/NEMA 4 housing allows for mounting in wash-down locations
Maintenance free
– High reliability sensor technology for long-term, maintenance-free operation
Circuit protection
– Circuit protection avoids damage due to incorrect input wiring

The P7650 sensor can measure either air pressure or velocity. Measuring air velocity requires the use of the P7650L velocity pick-up probe. The P7650 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1” WC / 0-3,000 FPM or 1-10” WC / 3,000- 6,000 FPM with four field-selectable sub-ranges.
The universal model comes in one pressure/velocity range: 0-10” WC / 0-7,000 FPM with seven field selectable sub-ranges. All variants are available with and without display. The P7650 has an IP65/NEMA 4 environmental rating.
Duct static pressure (Pressure mode)
Building or room pressure (Pressure mode)
Filter status (Pressure mode)
Air flow measurement (Velocity mode)

Media Compatibility	Dry air or inert gas
Input Power	Three-wire Volt mode: 24 Vac or 12-30 Vdc Two-wire mA mode: 12-30 Vdc
Output Power	Field-selectable: 2-wire, loop-powered 4-20 mA (DC only, clipped and capped), 24 Vac/dc or 3-wire 0-5V/0-10V
Response Time	Standard: T95 in 20 sec Fast: T95 in 2 sec, DIP switch selectable
Mode	Unidirectional or bidirectional, DIP switch selectable
Display (option):	Pressure mode: Signed 3-1/2 digit LCD, indicates pressure, overrange indicator Velocity mode: Signed 4-1/2 digit LCD, indicates velocity, overrange indicator
Proof Pressure	3 psid (20.6 kPa)
Burst Pressure	5 psid (34.5 kPa)
Pressure Mode Accuracy	±1% F.S. (combined linearity and hysteresis)
Velocity Mode Accuracy	±90 FPM (±0.45 MS) plus 5% of measured value
Temperature Effect	1” (250 Pa) models: 0.05%/°C; 10” (2.5 kPa) models: 0.01%/°C (Relative to 25 °C) 0 to 50 °C (32 to 122 °F)
Zero Drift (1-year)	1” (250 Pa) models: 2.0% max.; 10” (2.5 kPa) models: 0.5% max.
Zero Adjust	Pushbutton auto-zero and digital input (2-pos terminal block)
Operating Environment	0 to 60 °C (32 to 140 °F)
Altitude of Operation	0 to 3000 m
Pollution Deg.	2
Humidity Range	100% RH, non-condensing
Mounting Location	For indoor use only.
Fittings	Brass barb; 0.24” (6.1 mm) o.d.
Environmental Rating	IP65, NEMA 4
Flammability Rating	Plastic enclosure is UL 94 5VA fire retardant ABS
AGENCY APPROVALS	CE EMC Conformance: EN 61000-6-3:2007 and A1:2011 Class B, EN 61000-6-1:2007
