Honeywell T7506C Electronic Temperature Sensors
Features
- Fast response.
- Precise temperature measurement.
- 100 ohm or 4~20mA outputs
General
The T7506 C is 100 ohm platinum resistance or 4~20mA output temperature detectors (RTD’s), that sense temperature in electronic HVAC systems. They are designed for a variety of media such as air, liquid and steam, All sensors are Honeywell brand labeled.
Sensors are available in different housings for space, surface, duct, immersion,duct averaging, strap-on and outside air applications.
| 100 ohm PT Sensor OS# | Description | 4-20mA options OS# | Description |
|---|---|---|---|

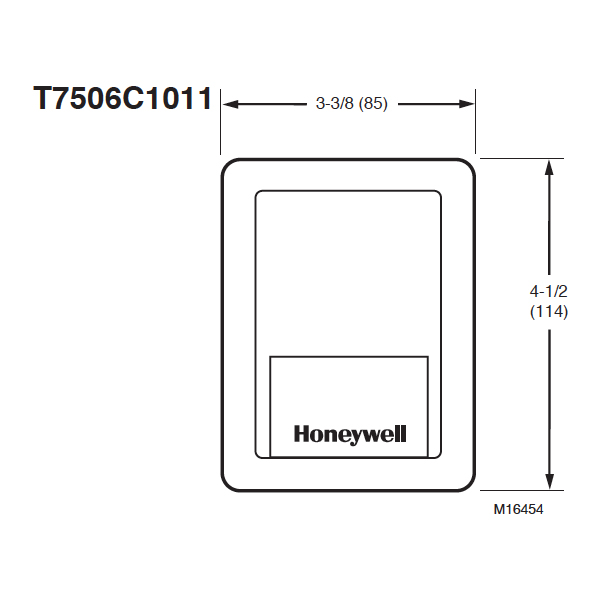

| T7506C1011 | Space Sensor | T7506C1011-2 | 0~50˚C(32~122˚F), 24VDC |

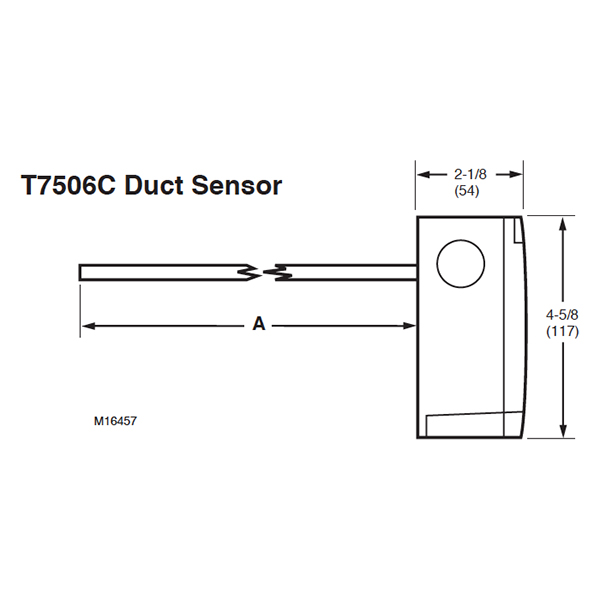

| T7506C1029 | 8'' SS duct sensor | T7506C1029-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1037 | 12'' SS duct sensor | T7506C1037-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1045 | 18'' SS duct sensor | T7506C1045-2 | 0~50˚C(32~122˚F), 24VDC |

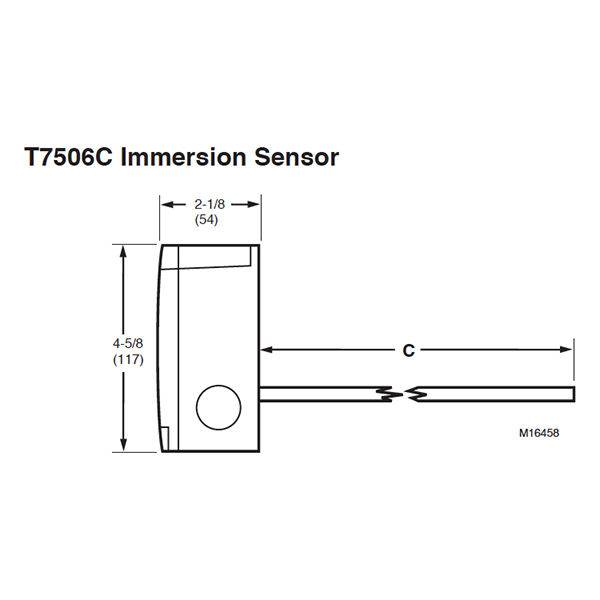

| T7506C1052 | 4'' SS spring-loaded immersion sensor-requires thermowell | T7506C1052-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1060 | 6'' SS spring-loaded immersion sensor-requires thermowell | T7506C1060-2 | 0~50˚C(32~122˚F), 24VDC |

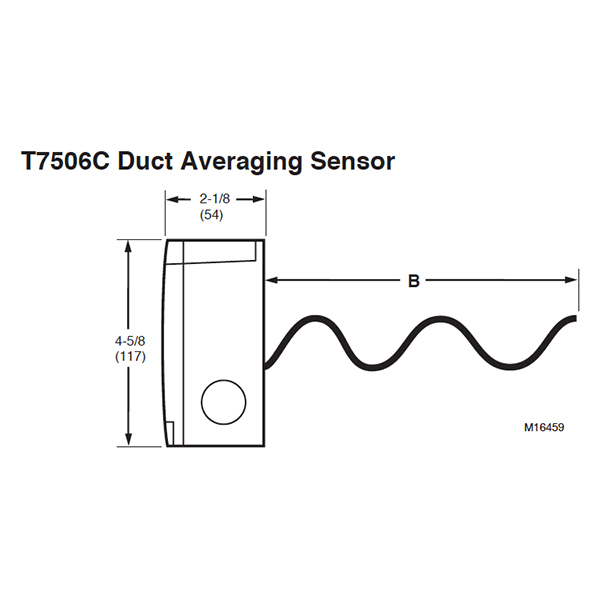

| T7506C1094 | 6' flex-duct averaging sensor | T7506C1094-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1102 | 12' flex-duct averaging sensor | T7506C1102-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1110 | 20' flex-duct averaging sensor | T7506C1110-2 | 0~50˚C(32~122˚F), 24VDC |
| T7506C1128 | 24' flex-duct averaging sensor | T7506C1128-2 | 0~50˚C(32~122˚F), 24VDC |

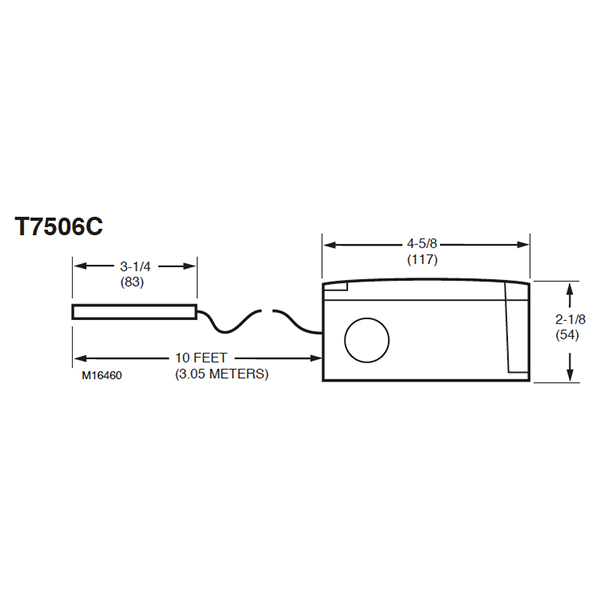

| T7506C1078 | 2'' SS strap-on sensor | T7506C1078-2 | 0~50˚C(32~122˚F), 24VDC |

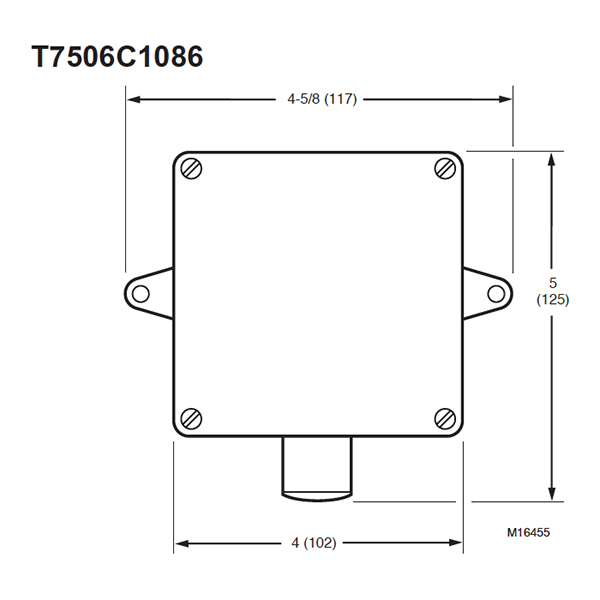

| T7506C1086 | Outside air sensor c/w sunshield | T7506C1086-2 | 0~50˚C(32~122˚F), 24VDC |
