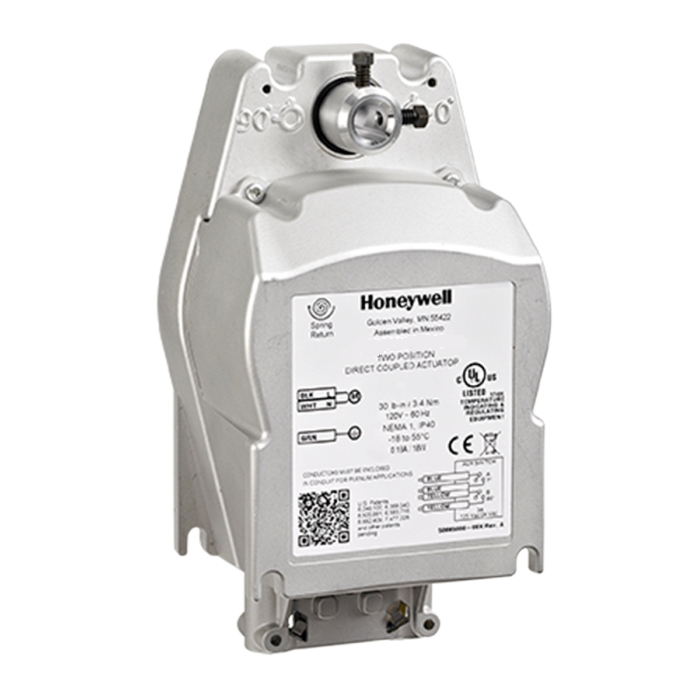

Honeywell Direct Coupled Actuators - Fire and Smoke MS4109F1210/U

漢威 防火/排煙用 風門驅動器 Honeywell Direct Coupled Actuators – Fire and Smoke MS4109F1210/U

請來信詢價

  • 美國品牌
  • 防火/排煙用用風門驅動器
  • 彈簧復歸
  • 電壓: 120 VAC ±10%
  • 控制訊號: Two position; SPST
  • 扭力: 80 lb-in. (5.9 Nm)
  • 旋轉角度: 95 ±3 degrees
  • 方向: 順時針/逆時針皆可
  • 控制訊號: Two position; SPST
貨號: MS4109F1210 分類: , , 標籤: , , , , ,

描述

The MS4109, MS4609, and MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

  • 80 lb-in. (5.9 N•m) minimum driving torque at 350°F (176°C)
  • Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
  • Integral spring return ensures level of return torque
  • Fifteen-second spring return timing
  • No special cycling required during long-term holding
  • No audible noise during holding
  • Patent pending design eliminates need for limit switches to reduce power consumption
  • Models available for 24, 120, and 230 Vac
  • Ninety-five degree angle of rotation
  • Actuator holds rated torque at reduced power level

Honeywell Fire And Smoke Damper Actuators

額外資訊

Controller Type:

MS4104, MS4109, MS4120: Line voltage (120 Vac), two-position, SPST (Series 40).
MS4604, MS4609, MS4620: Line voltage (230 Vac), two-position, SPST (Series 40).
MS8104, MS8109, MS8120: Low voltage (24 Vac), two-position, SPST (Series 80).
Torque Rating (at rated voltage):

Spring Return:
MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).
MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m).
MS4120F, MS4609F, MS8120F: 175 lb-in. (20 N•m).

Stall Maximum:
MS4104F, MS4604F, MS8104F: 150 lb-in. (17 N•m).
MS4109F, MS4609F, MS8109: 240 lb-in. (27 N•m).
MS4120F, MS4609F, MS8120F: 175 lb-in. (48 N•m).

350°F Driving:
MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).
MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m)
MS4120F, MS4609F, MS8120F: 175 lb-in. (20 N•m).
Timing (At Rated Torque and Voltage):

Drive Open: 15 seconds typical.
Spring Close: 15 seconds typical
Model

MS4104F1010, MS4104F1210, MS4604F1010, MS4604F1210, MS8104F1010, MS8104F1210, MS4109F1010, MS4109F1210, MS4609F1010, MS4609F1210, MS8109F1010, MS8109F1210, MS4120F1006, MS4120F1204, MS4620F1005, MS4620F1203, MS8120F1002, MS8120F1200
Legacy Model

ML4115A1009 ML4115A1017 ML4115B1008 ML4115B1016 ML4115H1002 ML4115J1009 ML4202F1000 ML4302F1008 ML4115C1007 ML4115C1015 ML4115D1006 ML4115D1014 ML4702F1009 ML4802F1007 ML8115A1005 ML8115A1013 ML8115B1004 ML8115B1012 ML8115H1008 ML8115J1005 ML8202F1006 ML8302F1004 MS4209F1007 MS4309F1005 MS4709F1014 MS4809F1012 MS8209F1003 MS8309F1001
