水管型 浸入式 溫度開關 Immersion Type Thermostat

請來信詢價

  • WPR-90GA
  • 液體膨脹式溫度開關
  • 電壓:110~250V
  • 工作溫度:0℃~90℃
  • 最大感測溫度:110℃
  • 溫度切換差:5° C
  • 附帶套管一組

描述

Specifications:
The thermostat with adjustable range 0 to 90°C is designed to control the temperature of the medium in the pipeline. Switching contact provides on/off output with current load of up to 16A.

Advantages:

  • Easy installation
  • Intuitive setting sink thermostat components
  • Modern and ergonomic design
  • Simple electrical connection

Certification:
CE certificate according to the directives 2006/95 EEC conformity assessment of the electromagnetic compatibility product of the product has been carried out according to EN60730-1: 2002 and EN60730-2-9: 2003

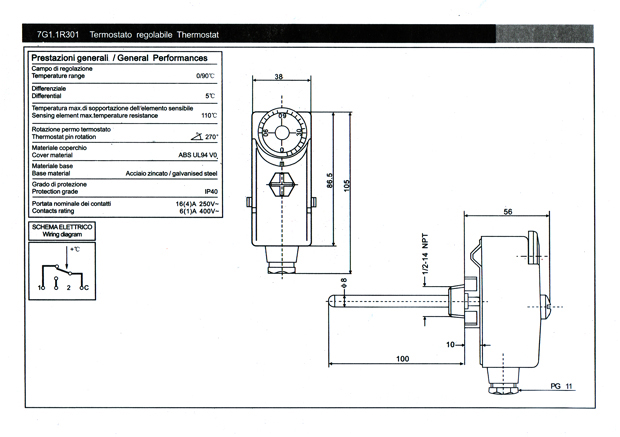

Technical data:

  • Temperature range: 0 to 90°C
  • Difference: 5°C
  • Temperature resistance of Switching element: 110°C
  • Length of Stem/Thread: 100 mm / G1/2 “
  • Outer Stem diameter: 8 mm
  • Protection Level: IP40
  • Load when Switching: 16 (4) A/250VAC – 6 (1) A/400VAC
  • Material Used: ABS UL94/ Galvanized steel
