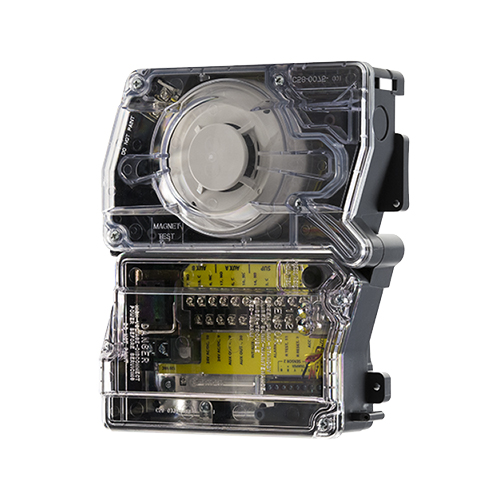

InnovairFlex™ duct smoke detectors combine an impressive collection of innovations to greatly simplify HVAC system monitoring. One unit can accommodate multiple installation footprints to overcome mounting constraints. Tool-free, plug-in sampling tubes speed and simplify installation. Broad temperature and humidity ranges accommodate exposure to environmental extremes. Easily visible status indications, a readily accessible test feature, and remote test station accessories simplify testing and maintenance. With its unmatched flexibility, InnovairFlex can adjust to fit any application.
-
4-Wire Photoelectric, integrated low-flow technology
-
Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/sec)
-
Versatile mounting options: square or rectangular configuration
-
Plug-in sensor and latest sensor technology help prevent false alarms
-
Broad ranges for operating temperature (–4°F to 158°F) and humidity(0% to 95% non-condensing)
-

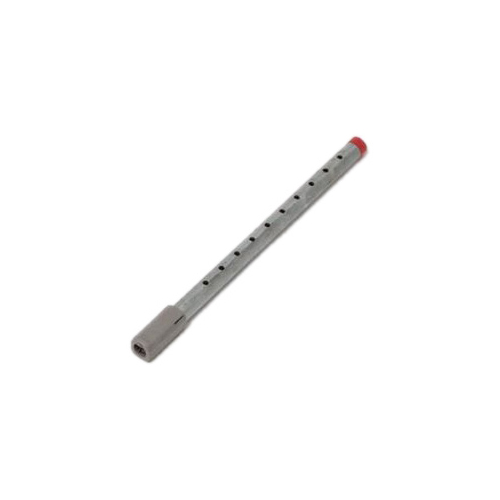

Patented sampling tube installs from front or back of the detector with no tools required
-
Increased wiring space with an additional ¾-inch conduit knockout
-
One easy-access Test/Reset button and improved LED status
-
Patented interconnect feature for multi-fan shutdown
-
New high-contrast terminal designations
-
Built-in short circuit protection from operator wiring errors
-
Field-selectable settings for configuring the detector
-
Two DPDT Form-C relay contacts
-
24 VAC/DC or 120 VAC
-
Backward compatibility with existing Innovair products, including remote accessories
