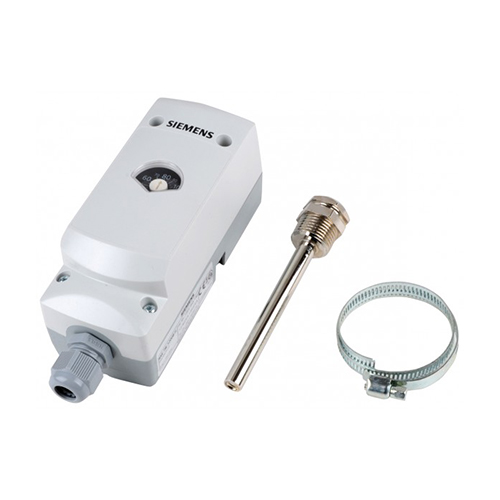

西門子 RAK-TW.1000HB 水管型 溫度開關 Siemens Thermal Reset Limit Thermostat

請詢價



  • 德國品牌
  • 原裝進口
  • 工作溫度區間:15~95度C
  • 2-position 控制



描述

  • 2-position thermal reset limit thermostat with single-pole changeover microswitch
  • Switching capacity contact connection 1-2: 16 (2.5) A, AC 250 V contact connection 1-3: 6 (2.5) A, AC 250 V
  • Time constant conforming to DIN EN 14597
  • 3 mounting choices: pipe, pocket or wall mounting
  • Adjusted switch-off temperature can be checked through the viewing window in the housing
  • IP43 and IP65 protection class available
  • Push-in terminals for fast installation

額外資訊

Protection pocket

PN 10, 100 mm, G½" LW7

Sensing element

Liquid expansion sensor

Capillary length

700mm

Setpoint setting range

15…95 °C

Switching differential

6K

Digital output, switching voltage

AC 24…250 V

Digital output, switching current

Contact connection 1-2: 0.1…16 (2.5) A
Contact connection 1-3: 0.1…6(2.5) A

Digital outputs

1-pole, Potential-free, Changeover contact

Degree of protection

IP65

Dimensions (W x H x D)

55 x 156 x 64 mm
