描述
- Series DSE electronic step thermostats are designed for capacity control or other multistage control of cooling, heating or airconditioning equipment.
- Type SEK temperature sensing elements are available for series SE.
- Double constant voltage circuit and noise elimination
- Model with heat-cool selector available.
- Type DSE:2 Step thermostat

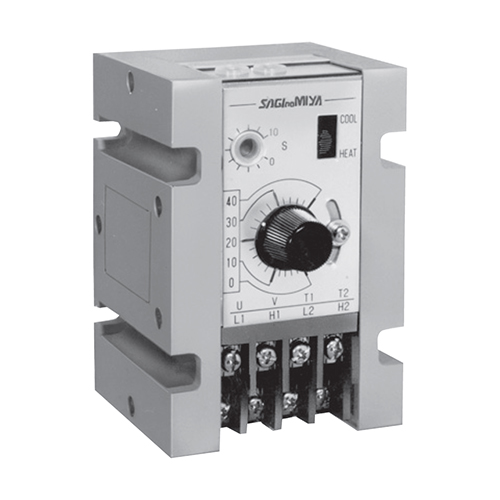

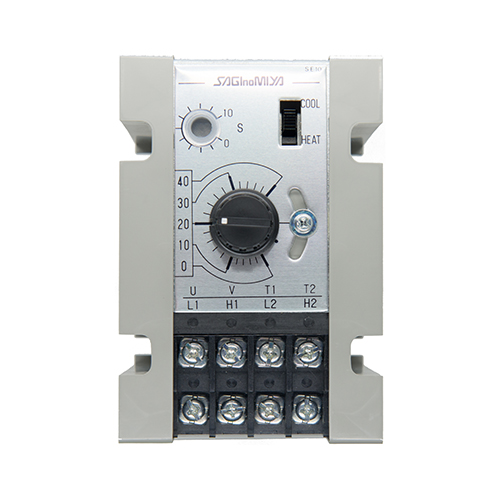

SAGInoMIYA DSE Electronic Step Thermostat
Type DSEUnit: °C
| Model# | Range(Min) | Range(Max) | Temp. Sensing Element | Mode |
|---|---|---|---|---|
| DSE-4020A42 | -20°C | 20°C | SEK-12 | Cooling Mode |
| DSE-4040A42 | 0°C | 40°C | SEK-14 | Heat-Cool Selector |
| DSE-4060A42 | 20°C | 60°C | SEK-16 | Heating Mode |
