漢威 SA系列 消震管 Honeywell Series SA – Vibration Absorbers

客訂產品請來信詢問

Series SA – Vibration Absorbers

  • 漢威 SA系列 消震管
  • 精簡型結構
  • 連接口部分材質為銅(Copper), 其餘結構材質皆為不鏽鋼
  • 具抗凍結構
  • 雷射焊接
  • 同時適用於垂直安裝
  • 可用於ammonia 以外所有CFC, HCFC, HFC系列冷媒
  • 最高耐壓PS: 35bar
  • 最高測試壓力PF: 1.5 x PS
  • 其餘詳細規格請來信詢問

描述

Honeywell Series SA – Vibration Absorbers

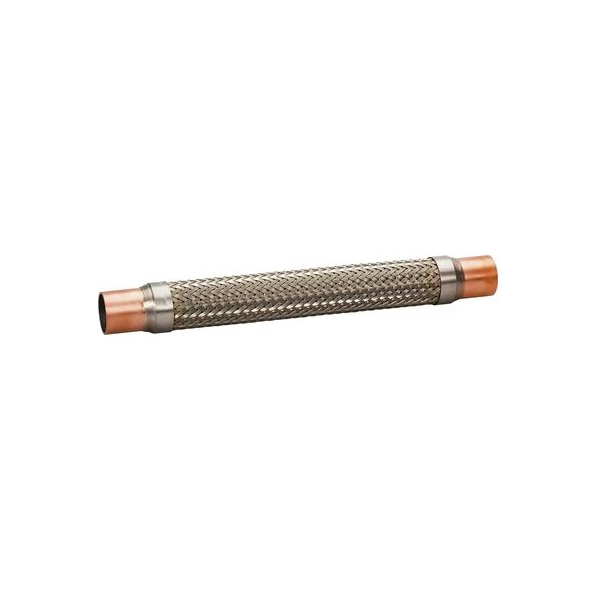

Series SA Vibration absorbers, frost resistant construction, laser welded.

Vibration absorbers series SA are installed in refrigerated plants to minimize vibrations on the pipes caused by the compressor. Furthermore they decrease noise and compensate small thermal displacements.

  • Flexible pipe, braid and shoulder made of stainless steel
  • Connection fittings made of copper
  • Frost resistant construction – no collecting of condensation water within the corrugated area
  • Suitable for vertical installation
  • No preventive measures from overheating necessary when soldering
  • Maximum pressure PS 35 bar(a)
  • Maximum test pressure PF 1.5 x PS
  • Special versions on request
TypeConnectionTotal Length(mm)
SA06-1/46mm ODF
1/4" ODF
230
SA3/83/8" ODF230
SA1/21/2" ODF230
SA16-5/816mm ODF
5/8" ODF
255
SA3/43/4" ODF255
SA22-7/8 22mm ODF
7/8" ODF
290
SA28-1 1/828mm ODF
1-1/8" ODF
330
SA35-1 3/835mm ODF
1-3/8" ODF
375
SA42-1 5/842mm ODF
1-5/8" ODF
430
SA54-2 1/8 54mm ODF
2-1/8" ODF
510
