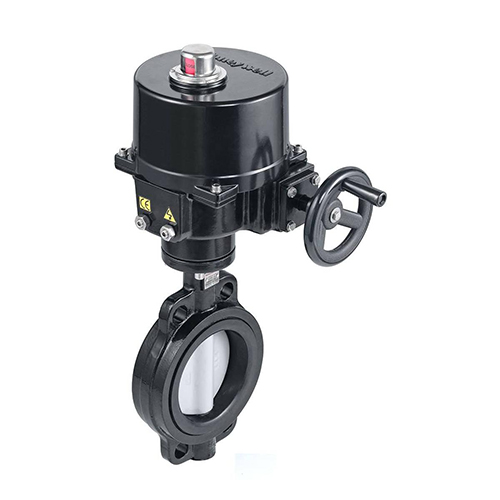

漢威 V4-ABFW系列 開關式 電動蝶閥 Honeywell Motorized Butterfly Valve (On/Off Control)

請詢價

  • Honeywell Actuated Wafer type butterfly valves
  • The V4 Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications.
  • The V4 series is equipped with standard On-Off or modulating (4~20mA, 1~5V, or 0(2)~10V select by DIPswitch) control quarter-turn electric actuator.
清除

描述

• Wide size range (DN 50…DN350)
• For On-Off or Modulating Control
• Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
• Irreversible worm gear.
• Visual mechanical position indicator for accurate visual reference of valve position.
• Anti-condensation heater and 2 aux. limit switches on standard model
• Enclosure IP67

額外資訊

(Valve) Sizes

DN50 – DN600(Wafer Type)

(Valve) Nominal pressure

PN16

(Valve) Tightness

Bubble tight

(Valve) Temperature range

-10 ~ 120°C Maximum

(Valve) Body

FCD45 (V4) or SUS304 (V7)

(Valve) Shaft

Stainless Steel, 970 416S21

(Valve) Disc

Ductile Iron or SUS304

(Valve) Liner

EPDM

(Actuator) Motor Voltage

230VAC, 50 / 60 Hz

(Actuator) Travel Angle

90° ± 5°

(Actuator) Input (Modulating)

4~20mA, 1~5V,
or 0(2)~10V select by DIP-switch

(Actuator) Enclosure

IP67 Watertight

(Actuator) Ambient Temperature

-5 °C to +60 °C

(Actuator) Indicator

Continuous Position Indicator

(Actuator) Manual Override

Non-clutch design

(Actuator) Worm Gear

Permanently lubricated and self locking

(Actuator) Mechanical Stops

External Adjustable Limit stops

(Actuator) Space heater

15W 230V Anti-condensation

(Actuator) Material

Steel. Aluminum Alloy, Al Bronze

(Actuator) External Coating

Anodized and dry powder epoxy

(Actuator) Stall Protection

Built-in thermal protection
Cut off at 125 ± 5 °C
Reset at 95 ± 5 °C

Model No.

V4-ABFW-EPN16-050-01, V4-ABFW-EPN16-065-01, V4-ABFW-EPN16-080-01, V4-ABFW-EPN16-100-01, V4-ABFW-EPN16-125-01, V4-ABFW-EPN16-150-01, V4-ABFW-EPN16-200-01, V4-ABFW-EPN16-250-01, V4-ABFW-EPN16-300-01, V4-ABFW-EPN16-350-01, V4-ABFW-EPN16-400-01, V4-ABFW-EPN16-450-01, V4-ABFW-EPN16-500-01, V4-ABFW-EPN16-600-01
