Series M – Part program (coil with connector) for AC and DC solenoid valve applications (normally closed)
Solenoid valves series M are used in general refrigeration and for original equipment to cut off/activate the refrigerant flow in a refrigerating plant. The solenoid valves can be installed in the liquid line, hot gas line and suction line of a refrigerating unit.
- Number of operating cycles > 1,5 million
- Max. opening pressure differential MOPD:
- AC-coil: MA, MD: 25 bar MS: 30 bar
- DC-coil: MA, MD: 21 bar MS: 21 bar
- Further voltages on request
- Voltage tolerance AC: 10%; DC: +10%, -5%
- Special versions on request

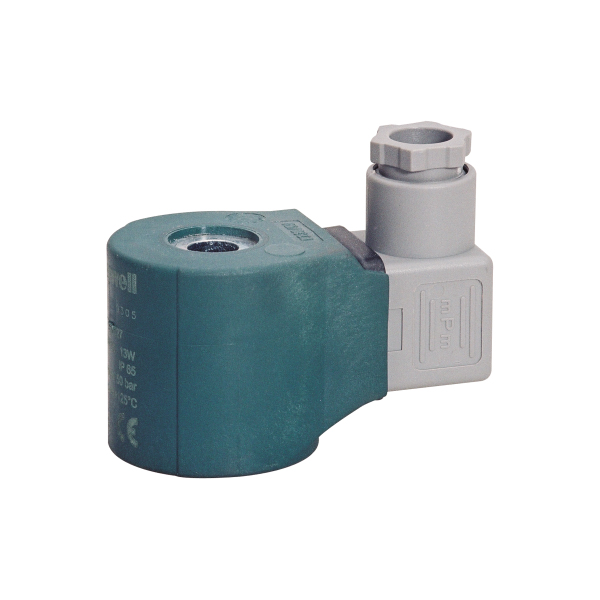

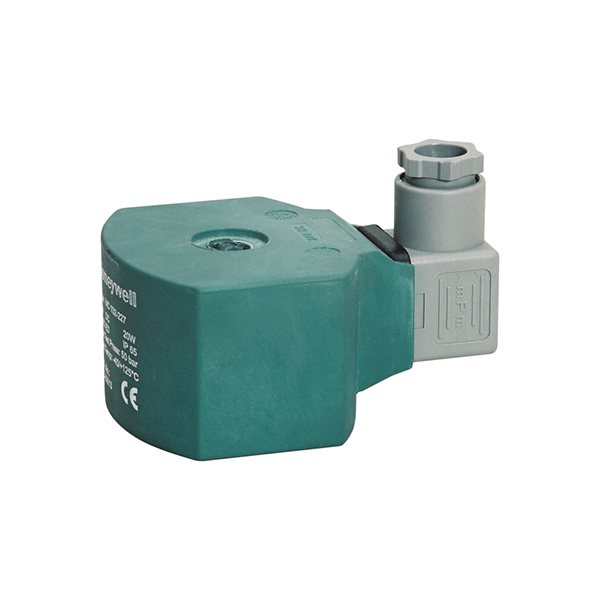

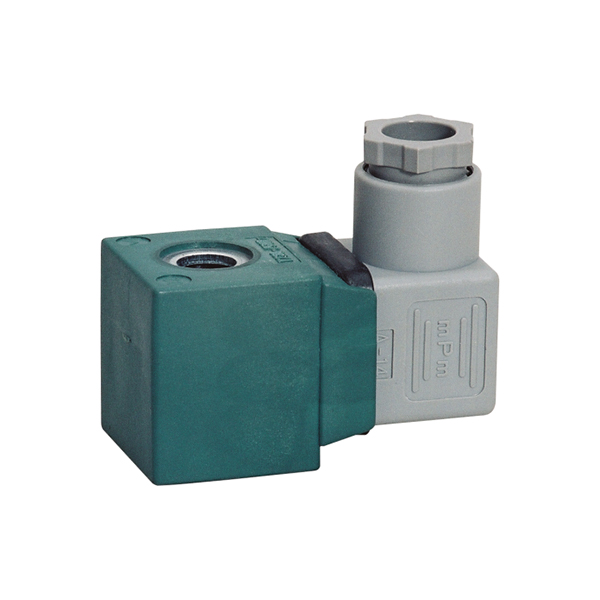

Honeywell Solenoid Coil
| Model | Voltage, frequency | Type |
|---|---|---|
| MC 062, 8 W | 230V AC 50/60Hz | MC-00001 |
| MC 062, 8 W | 110V AC 50/60Hz | MC-00002 |
| MC 062, 8 W | 24V AC 50/60Hz | MC-00003 |
| MC 102-227, 13 W | 230V AC 50/60Hz | MC-00005 |
| MC 102-227, 13 W | 110V AC 50/60Hz | MC-00006 |
| MC 102-227, 13 W | 24V AC 50/60Hz | MC-00007 |
| MC 102-227, 20 W | 24V DC 20W | MC-00013 |
