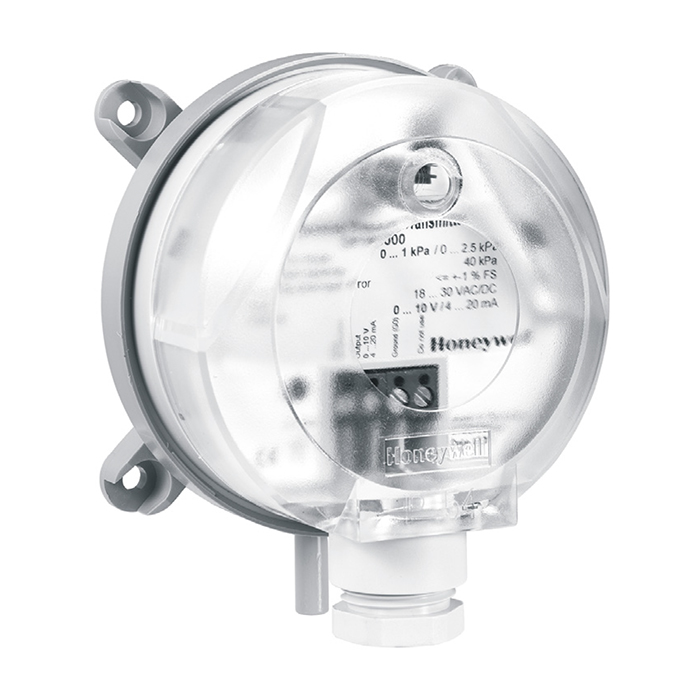

漢威 DPTE系列 三線式 壓差傳送器 Honeywell DPTE Series 3-Wire Differential Pressure Transmitter

請來信詢價

  • 美國品牌
  • Honeywell Differential Pressure Transmitter
  • 壓差傳送器/傳感器
  • 高精確度
  • 反應時間快速(1 sec/100 msec)
  • 可選擇感測壓力範圍
  • 輸出訊號: 4~20 mA / 0~10 VDC
  • 電源輸入: 24VAC/DC

描述

General

The differential pressure transmitters of the DPTE series are used for measuring differential pressure, positive pressure, and vacuum.

The transmitters are suitable for:

  • air-conditioning,
  • building automation,
  • environmental protection,
  • valve and flap control,
  • filter and blower monitoring,
  • fluid and level monitoring,
  • control of air flows.

Features

  • Monitoring gaseous, non-aggressive media
  • Piezo-resistive pressure transducer
  • Up to 40 kPa (60 kPa) overload capacity
  • Rugged design; protection class IP54
  • Easy installation and wiring connection
  • Measurement range adjustable by jumper
  • Response time adjustable by jumper
  • Output signal adjustable by jumper
  • Re-zeroing possible by pushbutton

Models

ModelRangeOverload CapacityBurst Pressure
DPTE50S-50...0...+50Pa20 kPa40 kPa
DPTE100S-100...0...+100Pa20 kPa40 kPa
DPTE500S-500...0...+500Pa20 kPa40 kPa
DPTE1000S-1000...0...+1000Pa40 kPa70 kPa
DPTE1000...100Pa / 0...250Pa20 kPa40 kPa
DPTE2500...250Pa / 0...500Pa20 kPa40 kPa
DPTE5000...500Pa / 0...1000Pa20 kPa40 kPa
DPTE10000...1000Pa / 0...2500Pa40 kPa70 kPa
DPTE50000...5000Pa / 0...10000Pa60 kPa120 kPa



額外資訊

Supply voltage

18…30 Vac/dc, 50/60 Hz

Output signal

0…10 Vdc,
4…20 mA

Pressure medium

Air + non-aggressive gases

Working temperature

0…50 °C

Linearity and hysteresis error

<±1.0% of FS

Storage temperature

-10…+70 °C

Humidity

0…95% rh, non-condensing

Repetition accuracy

<± 0.2% of FS

Response time

1 s (switchable to 100 ms)

Process connection

6 mm hose pipe

Electrical connection

Screw terminal block for wire up to 1.5 mm²

Housing material

ABS and POM

Cable entry

M20x1.5 (polyamide)

Protection class

IP54 as per EN60529

EMV

EN60770, EN61326

Weight approx.

130 g
