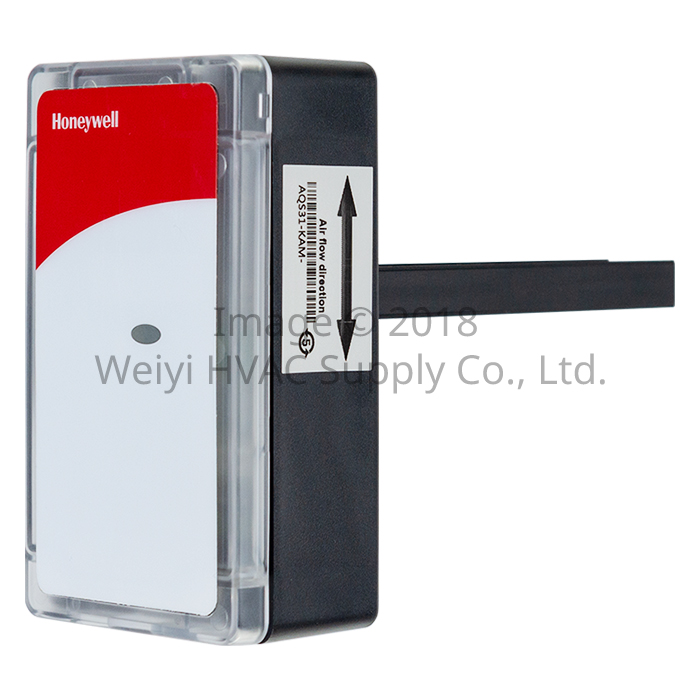

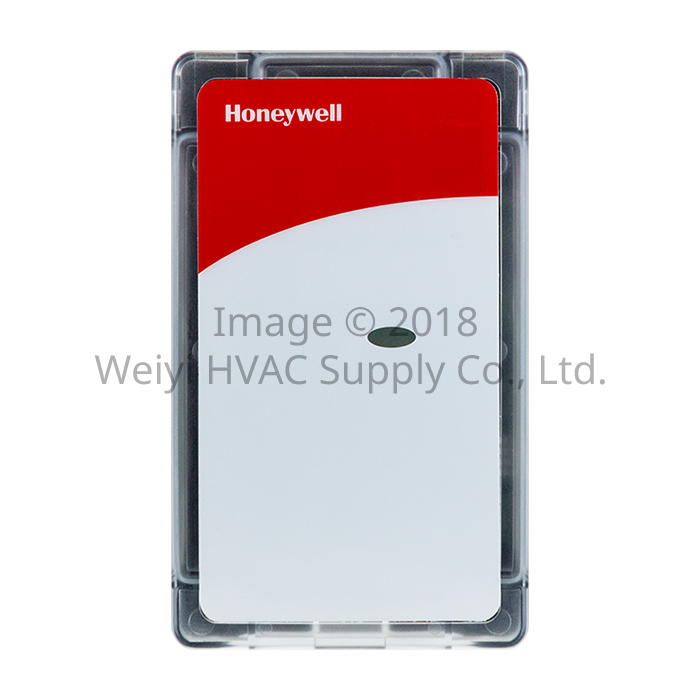

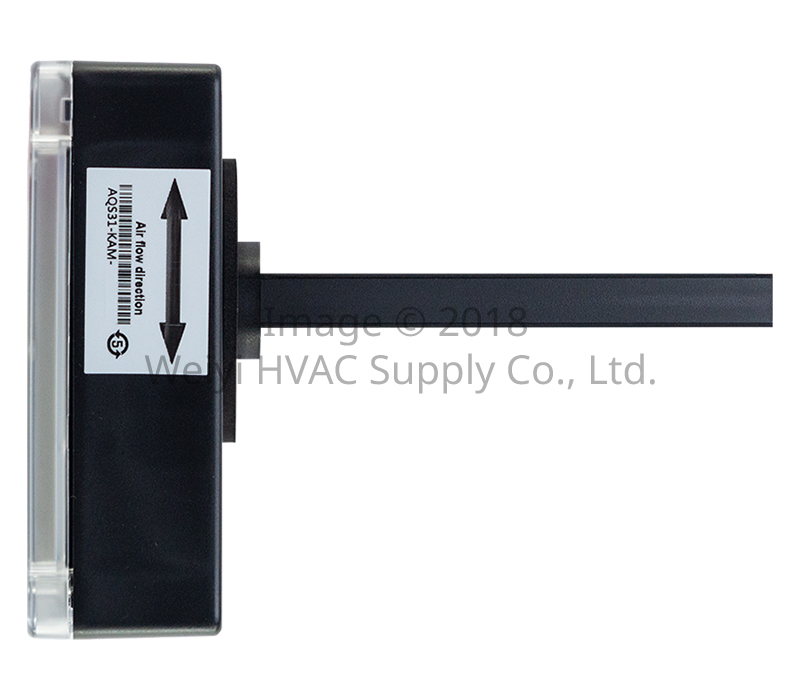

漢威 AQS系列 二氧化碳感測器/CO2傳送器 Honeywell AQS-Series CO2 Transmitter

請詢價

  • 美國品牌
  • 二氧化碳傳送器
  • 0~2000/3000ppm 濃度偵測可選擇
  • 有LCD顯示機種
  • 4~20 mA, / 2~10 VDC /Mod-bus 輸出
  • 附帶一組SPDT接點
清除

描述

Application

AQS series transmitters are designed for use with building automation, energy management, and computer/ monitoring systems.
These sensors can be used for HVAC system, hospitals, greenhouse, food storage, and incubators.

Features

  • State-of-the-art Non-Dispersion-Infrared (NDIR) technology to measure carbon dioxide gas
  • 4~20 mA, / 2~10 VDC output selectable
  • Mod-bus and relay output built in

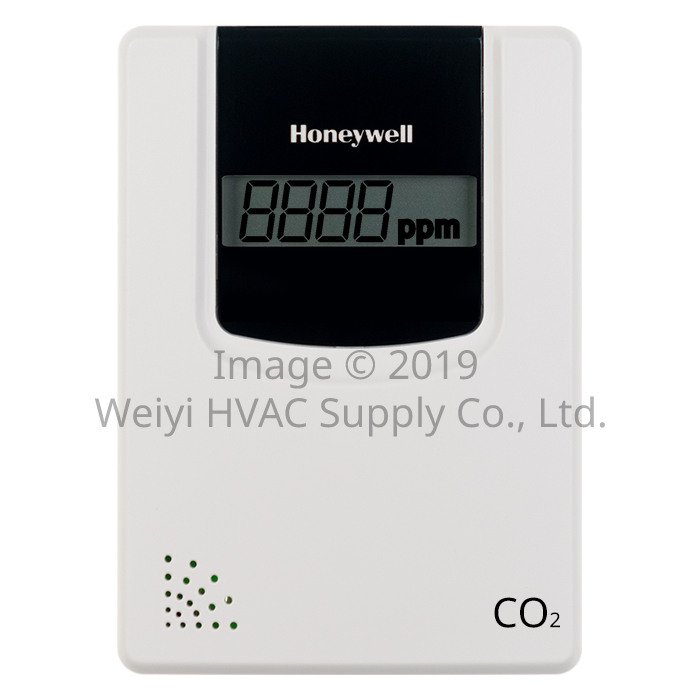

  • LCD display option for both Space / Duct
  • CO2 range is selectable by jumper
  • High reliability & accuracy
  • Relay output range can adjust by mod-bus
  • Rapid response

額外資訊

Model

Room Sensor, Duct Sensor, Room Sensor with LCD, Duct Sensor with LCD

CO2 Sensor

NDIR

Measurement Range

0~ 3000ppm

Signal Output

4~20mA , 2~10VDC
Modbus RTU

Accuracy

±30ppm, ±5% of measurement value @25C.

Relay contact setting

800/1000 ppm

Relay output

isolated N.O. & N.C.,
2A, 30V up to 0.5A, 125V dc/ac.

Power Supply

24 VAC/VDC(12~36V)

Current Output Load

500 Ohm Max

Working temperature:

-10℃ ~ +70℃

Room type

5% ~ 95% RH without condensation

Certification

CE

Housing Material

Plastic (ABS)
Flame retarded acc. to UL94-V1

Protection Standard

Room type: IP30
Duct type: IP65
