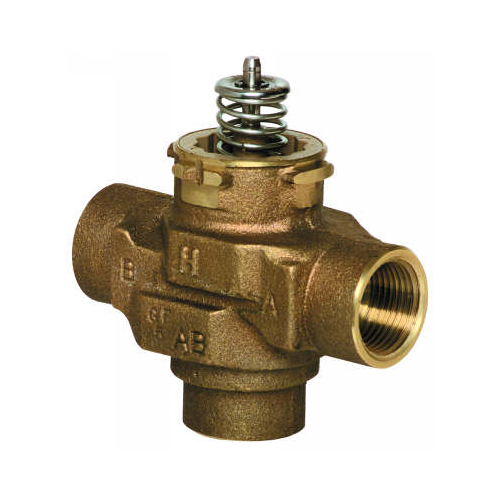

漢威 1-1/4″ 三通閥 閥體 Honeywell 1-1/4″ 3-Way Valve Body

請詢價

  • VCZND6100/U
  • Honeywell 3-way 1-1/4 in. fNPT Vc hydronic valve assembly with 9 Cv and linear flow
  • 美國品牌
  • Connection: fNPT
  • 適用於VC6011VC6013驅動馬達

描述

Overview

Three-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

Features

  • Quick open and linear flow characteristics available
  • Mixing or diverting application
  • A-AB-B body pattern
  • 7000-series valves for floating and modulating non-fail safe applications
  • 6000-series valves for two-position control
  • High close-off rating independent of Cv
  • Available with a variety of North American and international pipe fittings
  • No tools required for actuator installation or removal
  • Actuator removal does not require draining system
  • Service is by replacement of cartridge, not valve body
  • Cartridge replacement rebuilds valve to factory-new condition

額外資訊

Maximum Safe Operating Pressure (kPa)

2068 kappa (20 Bar)

Used With

VC actuators, On-Off Type

Approvals, Canadian Standards Association

CSA Certified

Connection Type

Female NPT

Body Pattern

Three-way A-AB-B

Pipe Size

1-1/4 in.
DN32

Fluid Temperature

1 C to 95 C
34 F to 203 F

Capacity

9.0 Cv
7.7 kvs

Materials (Body)

Bronze

Materials (Stem)

Stainless Steel

Flow Characteristic

Linear
