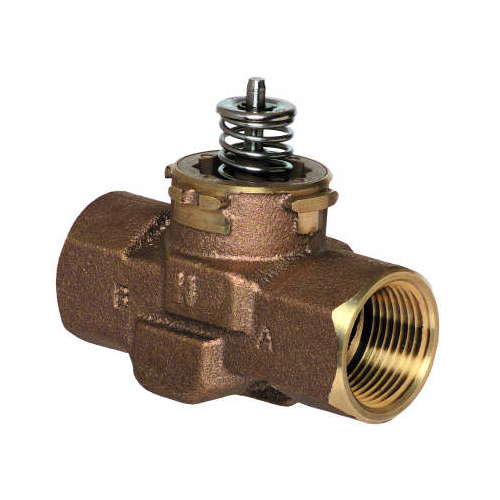

漢威 1-1/4″ 二通閥 閥體 Honeywell 1-1/4″ 2-Way Valve Body

請詢價

  • VCZBD1100/U
  • Honeywell 2-way 1-1/4 in. fNPT Vc hydronic valve assembly with 7 Cv and linear flow
  • 美國品牌
  • Connection: fNPT
  • 適用於VC6011VC6013驅動馬達

描述

Overview

Two-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

Features

  • Quick open, linear, and equal percentage flow characteristics available
  • Bi-directional installation
  • 3000-series valves for floating and modulating non-fail safe applications
  • 1000-series valves for two-position control
  • High close-off rating independent of Cv
  • Available with a variety of North American and international pipe fittings
  • No tools required for actuator installation or removal
  • Actuator removal does not require draining system
  • Service is by replacement of cartridge, not valve body
  • Cartridge replacement rebuilds valve to factory-new condition



額外資訊

Maximum Safe Operating Pressure (kPa)

2068 kappa (20 Bar)

Used With

VC actuators, On-Off Type

Approvals, Canadian Standards Association

CSA Certified

Connection Type

Female NPT

Body Pattern

Two-way, Straight-through

Pipe Size

1-1/4 in.
DN32

Fluid Temperature

1 C to 95 C
34 F to 203 F

Capacity

7.0 Cv
6.5 kvs

Materials (Body)

Bronze

Materials (Stem)

Stainless Steel

Flow Characteristic

Linear

取得報價
