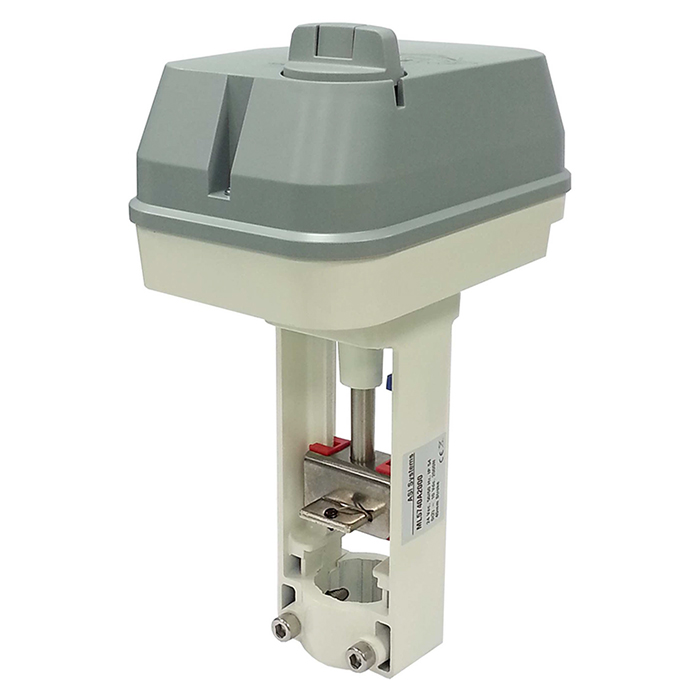

ML5740A 驅動馬達 ASI Systems ML5740A Electric Linear Valve Actuators

請來信詢價

  • 美國品牌
  • ML5740A2000
  • ML5740A2500
  • 操作簡易
  • 不需額外安裝連結桿於閥座上
  • 手動旋鈕

描述

APPLICATION
The ML5740A series actuators operate standard ASI Systems valves in heating, ventilating and air conditioning (HVAC) applications. The ML5740A series actuators modulating operated for:

  • 2-way or 3-way valve
  • Chilled water, hot water or steam valve
ML5740A 驅動馬達 ASI Systems ML5740A Electric Linear Valve Actuators

ML5740A安裝示意圖

額外資訊

Supply Voltage

24 Vac ±15%; 50/60 Hz

Power consumption

10 VA

Signal input

0…10 Vdc or 2…10 Vdc (4 to 20 mA)

Stem Force

ML5740A2000: 2000N
ML5740A2500: 2500N

Actuator stroke

Free Stroke (Auto adapted): 10…52 mm

Run Time for 40 mm Stroke

120 seconds

Position Feedback Signal

0 to 5 Vdc, 1 mA maximum

Weight

ML5740A2000: 2.5 kg
ML5740A2500: 2.6 kg
