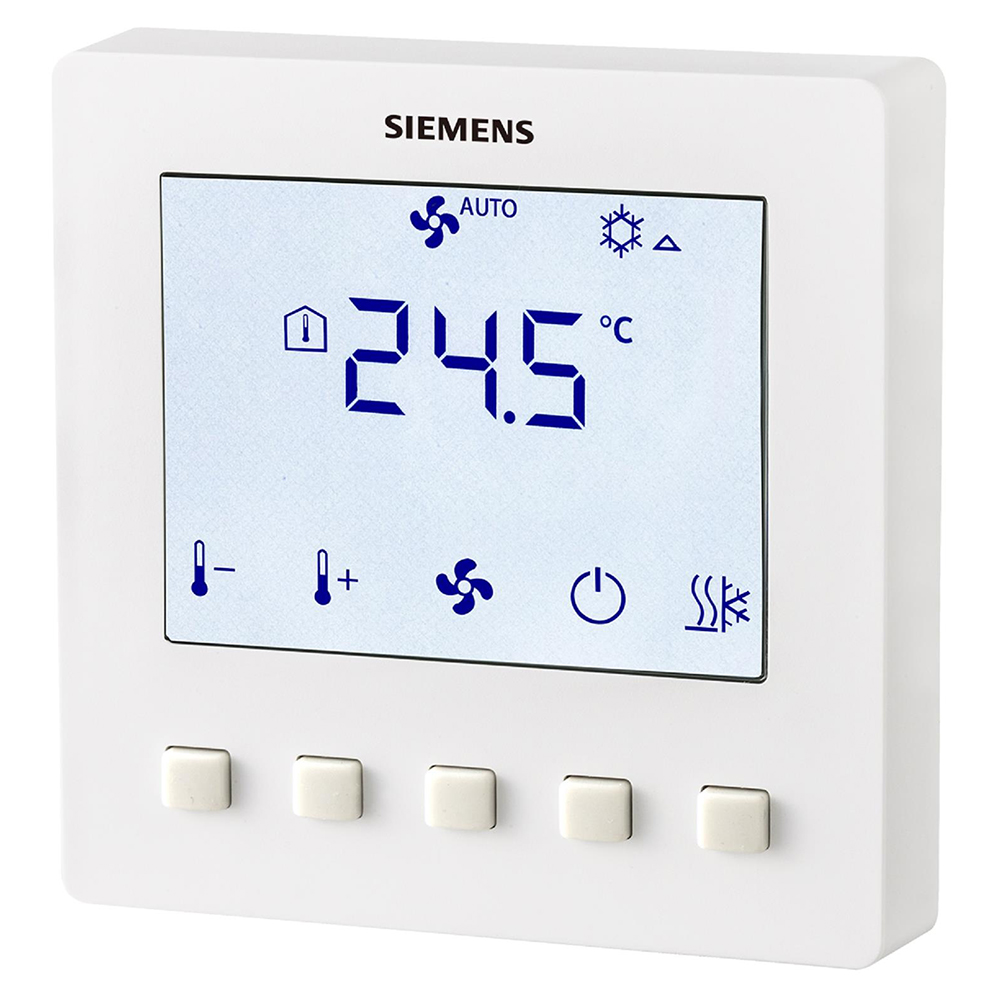

Flush-mount thermostat with LCD display for fan coil units

• Output for on/off valve actuator, 3-wire on/off valve
• 3-speed fan control: Automatic or manual
• Manual heating / cooling changeover or continuous Cooling only / Heating only
• Operation modes: Comfort and Protection
• Adjustable commissioning and control parameters
• Optional display of room temperature or setpoint
• Minimum and maximum setpoint limitation
• Display temperature in increments of 0.5 °C or °F
• Color of housing: signal white (RAL 9003)
• LED backlit display
• Full or partial keylock
• Internal sensor calibration
• Timer with delay off function: preset or user selection from 1 to 23 hours
• Return to previous mode or Protection (Off) mode upon power down
• Fan speed low or off in deadzone
• Fan minimum On-time
• Three standard color housings on bulk pack for project delivery
• Customization is also available by request

Additional info

• LED backlit display
• Keylock function
• Display either room temperature or setpoint
• Comfort and Protection(Off) operating modes
• Automatic or manual heating/cooling changeover
• Automatic or manual 3-speed fan control
• Selectable fan operation in deadzone
• Timer with delay Off function: preset or user selection from 1 to 23 hours
• Minimum and maximum setpoint limitation
• Return to previous operating mode or Protection(Off) upon power down
• Internal sensor calibration
• Adjustable commissioning and control parameters
• Fit into 86×86 conduit boxes
• Housing available in different colors
