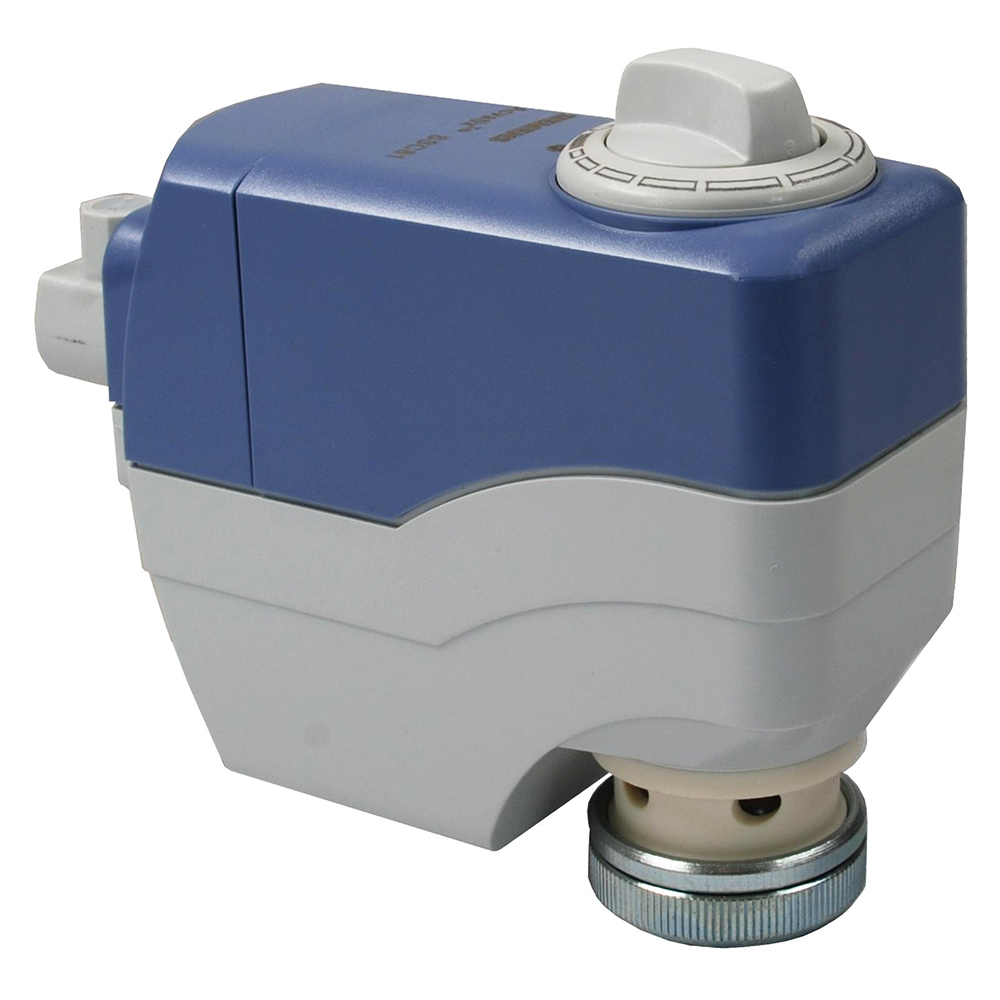

西門子 SSC 電動閥驅動器 Siemens Electromotoric Actuator

請來信詢價

  • 德國品牌
  • Siemens Electromotoric actuator
  • 24VAC
  • 電動閥驅動器
  • 適用於VVP, VXP, VVG, VXG系列閥
  • 各式型號歡迎詢問

描述

SSC..

Electromotoric actuator, 300 N, for valves with 5.5 mm stroke

Manual control with automatic reset to control mode.
Overload-proof through force-dependent switching off in the end position. With plastic housing and cap nut for fitting on threaded valves with 5.5 mm stroke.

  • SSC31 operating voltage AC 230 V 3-position control signal
  • SSC81 operating voltage AC 24 V 3-position control signal
  • SSC61 operating voltage AC / DC 24 V DC 0…10 V control signal
  • SSC61.5 same as SSC61, plus electrical fail-safe function
  • Nominal force 300 N
  • Automatic identification of valve stroke
  • Direct mounting with coupling nut, no tools required
  • Cable connection via screw terminals
  • Manual override with indication of position and direction of travel
  • Parallel connection of multiple actuators

額外資訊

Positioning Force

300N

Stroke

5.5mm

Degree of protection

IP40

Ambient temperature, operation

5…50 °C

Medium temperature

1…110 °C

Mounting position

Upright to horizontal

Spring return function

Only SSC61.5
