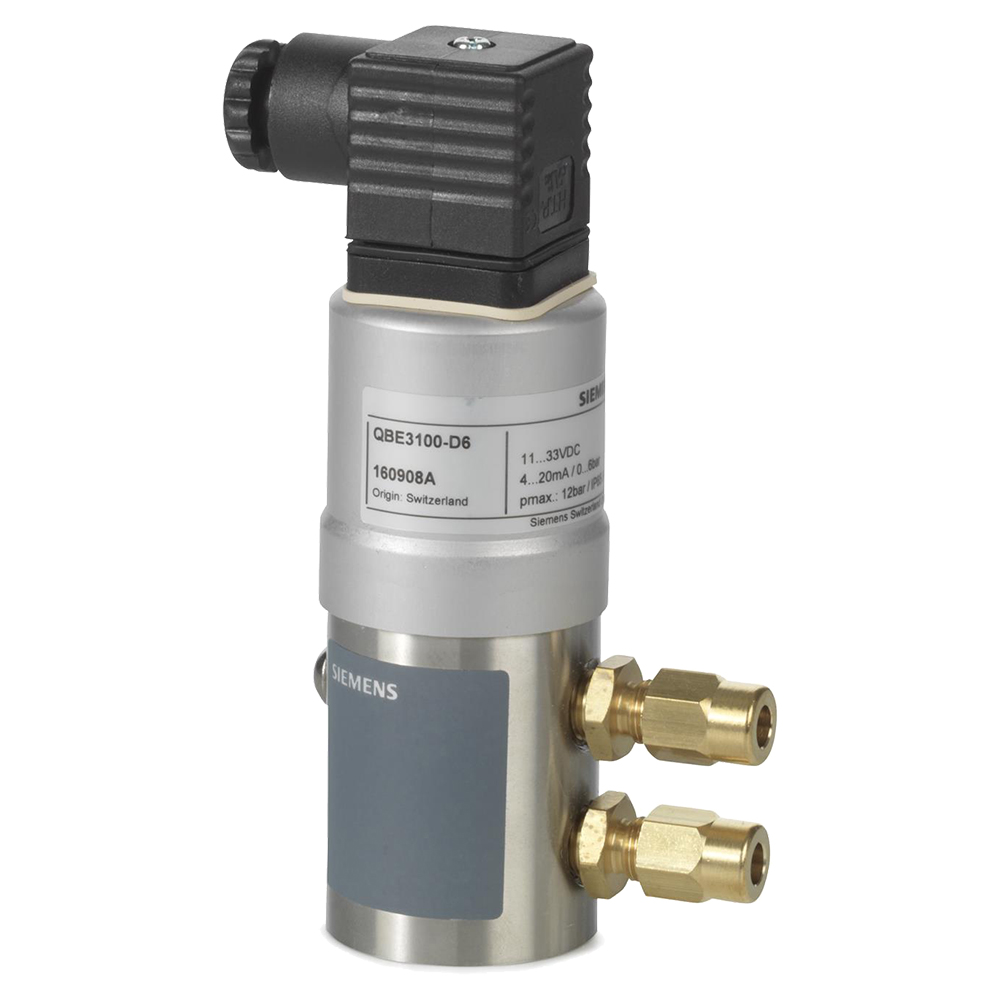

西門子 QBE3100系列 壓差感測器 Siemens Differential pressure sensors for liquids and gase (4…20 mA)

請來信詢價

  • Siemens HVAC Products
  • 適用於中性溫和液體/氣體(slightly aggressive liquids and gases)
  • 陶瓷測量裝置
  • 操作電壓DC 11…33 V
  • 輸出訊號DC 4…20 mA

描述

Differential pressure sensor, suitable for gases or liquids, for the measurement of pressure differentials in HVAC systems.

  • Ceramic measuring system
  • Robust construction for highly reliable operation
  • For neutral and mildly corrosive liquids and gases
  • Supply voltage DC 11…33 V
  • DC 4…20 mA output signal
  • Male-threaded G1/8″ connection
  • Delivery includes 2 screwed fittings for copper pipes, 6 mm diameter

For slightly aggressive liquids and gases. With threaded connections G1/8″.
Including mounting bracket and 2 screwed fittings for copper pipe, 6 mm dia.
*Not suitable for use with ammonia or freones.

額外資訊

Product No.

QBE3100-D1, QBE3100-D1.6, QBE3100-D2.5, QBE3100-D4, QBE3100-D6, QBE3100-D10, QBE3100-D16

Operating voltage

DC 11…33 V

Analog output, signal

DC 4…20 mA

Pressure conneciton

Internal thread G 1/8 "

Connection, electrical

Plug-in connection

Medium temperature

-15…80 °C

Degree of protection

IP65
