描述



• Type CNS is provided with a fixed differential. Also manual reset models are available.
• Narrow and adjustable temperature differential for more accurate control model Type BNS is available.
• Available drip proof enclosure for marine application or explosion proof enclosure for special application.
• A mounting bracket is supplied as standard.
• With SPDT contact mechanism.
• IP44 with upper lid (option).

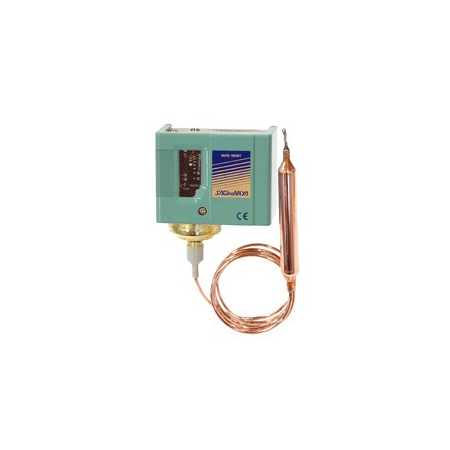

SAGInoMIYA CNS Temperature Control

Type CNS (Automatic Reset)
Unit: °C

Model#	Reset Type	Range(Min)	Range(Max)	Differential	Factory Setting(Off)	Factory Setting(On)
CNS-C115X	Automatic	−35	−15	Bottom 4 Top 3	−28	−25
CNS-C110X	Automatic	−25	0		−18	−15
CNS-C114X	Automatic	−15	15		−3	0
CNS-C134X	Automatic	0	35		17	20

SAGInoMIYA CNS Temperature Control

Type CNS (Manual Reset)
Unit: °C

Model#	Reset Type	Range(Min)	Range(Max)	Manual Reset	Factory Setting(Off)	Factory Setting(On)
CNS–C115XM2	Manual	−35	−15	Automatic operation on temperature decrease and manual reset	−28	Manual Reset
CNS–C110XM2	Manual	−25	0		−18
CNS–C114XM2	Manual	−15	15		−3
CNS–C134XM2	Manual	0	35		17
