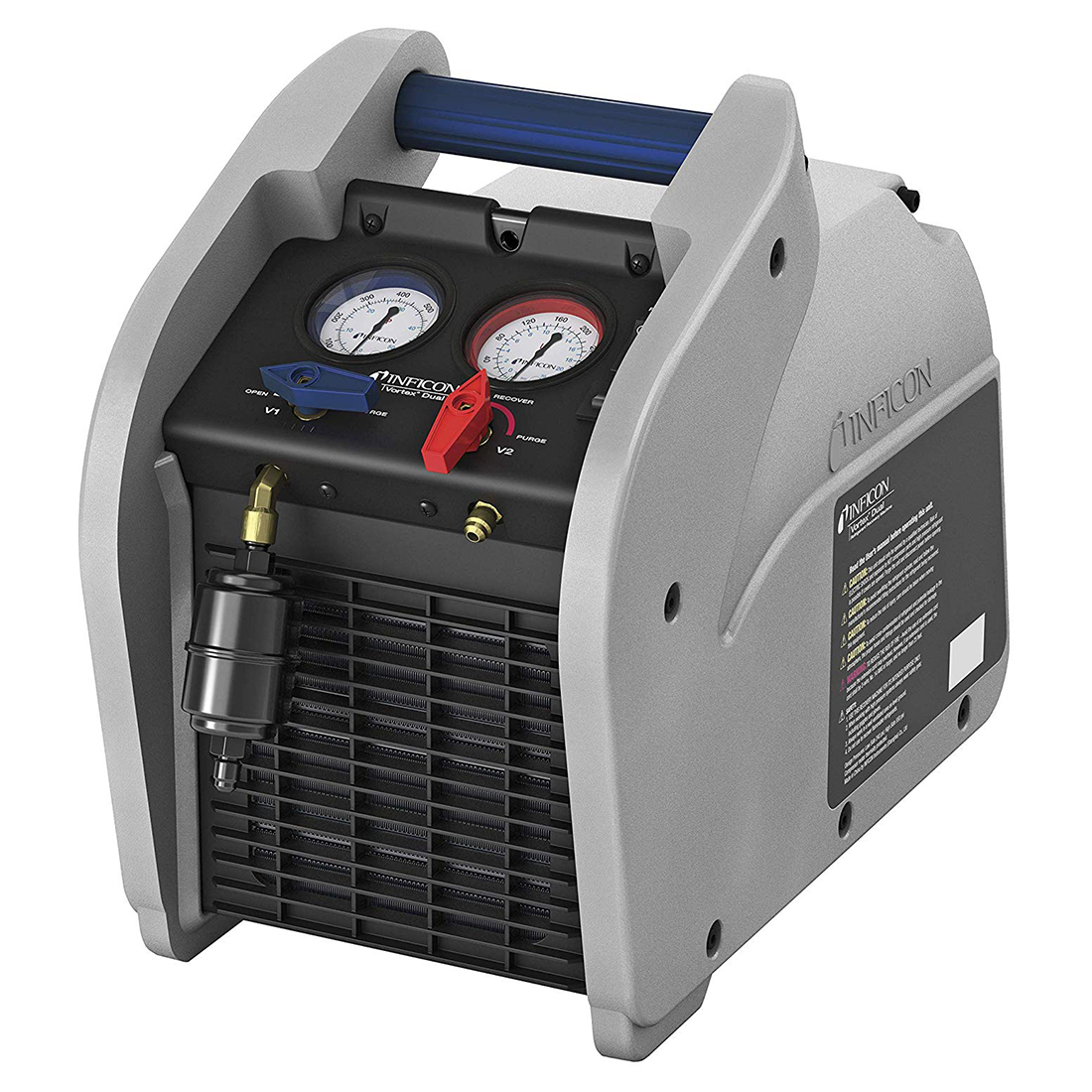

Inficon 冷媒回收機 Vortex Dual Refrigerant Recovery Machine


  • Inficon Vortex Dual 冷媒回收機
  • 美國品牌
  • 1HP馬力
  • 無油式雙活塞馬達
  • 內建高低壓表組
  • 內建沖洗功能
  • 隨機附贈一組乾燥過濾器
  • 隱藏式冷凝器提供絕佳散熱效果
  • 外型設計可吸收震動及噪音
  • 可用冷媒: R-12, R-1234yf, R-134a, R-22, R-401A, R-401B,R-401C, R-402A, R-402B,R-404A, R-407A, R-407B,R-407C, R-408A, R-409A,R-410A, R-500, R-502,R-507
  • 馬達過熱保護
  • 高壓保護
  • 中文操作手冊
  • 附贈斜背帶一條
  • 產品重量: 13.5kg
  • 請注意本公司僅銷售冷媒回收機並無銷售冷媒空桶
貨號: 714-202-G1 分類: 標籤: , ,


The Most Powerful Refrigerant Recovery Machine Available with the Best Warranty in the Industry

The new Vortex® Dual combines the proven capabilities of previous Vortex instruments with new extended features to give you the fastest, smallest, and easiest to use refrigerant recovery machine yet. Vortex® Dual sets itself apart by offering a full 1 HP dual piston compressor for the fastest recovery speeds available under real service conditions. A unique micro-channel condenser combined with an oversize fan helps lower discharge pressures resulting in sustained speed in the hottest ambient temperatures.



  • 1 HP dual piston compressor for industry leading recovery rates
  • Micro-channel condenser provides exceptional heat exchange allowing Vortex Dual to maintain recovery rates throughout the entire recovery cycle
  • Oversize fan provides exceptional cooling
  • Simple two valve operation
  • Full size protected gauges for both suction and tank pressure
  • Self-purge without the need to change hoses
  • Filter/dryer included
  • Noise absorbing blow molded case




Vortex Dual Refrigerant Recovery Machine

Unit Includes

Shoulder strap,
6 ft. (1.8 m) detachable power cord

Compatible refrigerants

Recovers commonly used CFCs, HCFCs, and HFCs including blends such as R410A, 12, 22, 134a, 404, 407C, 500, 502, and other Class III, IV and V refrigerants


29.75 lb. (13.5 kg)

Dimensions (L x W x H)

16.7 x 9.2 x 14.2 in.
(42.4 x 23.3 x 36 cm)


1 HP oil-less, dual valve, AC motor drive

High-Pressure shut-off

550 psi (37.92 bar)

Power Source

115V, 60 Hz, 15A or
230V, 50/60 Hz, 10A
(depending on model)
