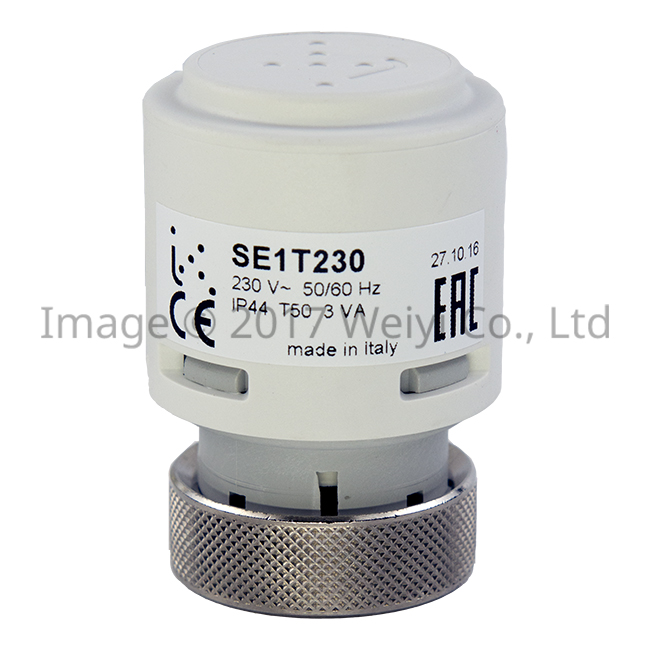

Industrie Technik Thermal Actuator IT牌 電熱式驅動馬達 SE1T230

請來信詢價

  • SE1T230 電熱式驅動馬達
  • 100N
  • 230 VAC ± 10 %, 50/60 Hz
  • On/Off Control
  • 3 VA
  • Stroke time: 3.5 min
  • Made in Italy
  • 適用於Industrie Technik VFX valve閥體
  • 防水等級IP44

描述

THERMAL ACTUATOR FOR VFX VALVES

Thermal actuator with position indicator for control of valves in heating or cooling systems. The actuator can be used to control radiator circuits, solar heating systems, heating or cooling coils, floor heating etc. To be combined with the VFX range of valves.

Technical data

  • Stroke: 2.5 mm
  • Ambient temperature: 0…50 °C
  • Ambient humidity: 10…90 % RH (non-condensing)
  • Storage temperature: -20…+70 °C
  • Storage humidity: < 95 % RH (non-condensing)
  • Closing/opening time: SE1T230, SE1TP230: 210 s / SE1T24, SE1TP24: 270 s
  • Peak current: 24 V AC: < 0.25 A / 230 V AC: < 0.70 A
  • Auxiliary switch: 250 V AC 3 A
  • Cable: PVC, section 2 x 0.50 mm2, 2 m length
  • Connection: M30 x 1.5 metal ring
  • Material, casing: Matt polycarbonate, self extinguishing V0 – V1 according to UL94
  • Weight: 200 g
  • Dimensions: Ø 40 x 61 mm
  • Protection class: IP40 (IP44 when vertically mounted)
  • Isolation class: II (SE1T230, SE1TP230)

額外資訊

重量 0.2 kg
