漢威 S245S系列 安全閥 Honeywell S245S Safety Valve High Performance Valve for Compressed Air

客訂產品請來信詢問

  • 漢威 S245s系列 安全閥
  • 最高工作溫度:180 °C
  • 壓力區間可設定介於0.9 ~ 4.3 bar, 每級 0.1 bar
  • 連接尺寸: 1-1/4″, 1-1/2″
    範例型號: S245S-114Z2.0
貨號: S245S 分類: 標籤: , , ,

描述

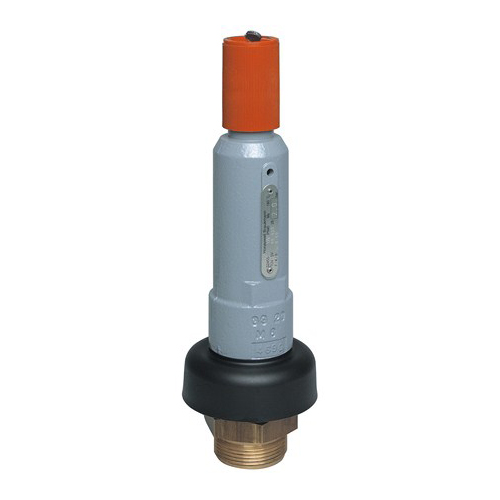

Honeywell S245S Safety Valve
High performance valve for compressed air

Application

The S 245 S safety valves are direct loaded high performance safety valves with lifting device. The venting bonnet
discharges the medium downwards.
The S 245 S safety valves protect fixed vessels containing granular or powdered materials or silo tank vehicles containing
fluids, granular or powdered materials which are unloaded using compressed air.

Special Features

  • Sturdy metal construction
  • Shakeproof lifting mechanism admitting no additional load
  • Rubber bellows for protection of moving parts
  • Venting bonnet for downwards discharge of fluid
  • Approved to AD information sheet A 2 and to VdTÜV information sheet safety valve 100 for set relief pressure between 0.9 and 4.3 bar
  • Set pressure adjustment at factory
  • Standard pressure settings between 0.9 and 4.3 bar in steps of 0.1 bar
  • Reliable and proved
  • Certified to Pressure Equipment Directive 97/23/EG, Reference No. CE 0035

Range of Application

  • Compressed air for discharge of granular powdered materials from fixed vessels
  • For liquid, granular or powdered materials from silo tank vehicles.
