漢威 S245B系列 安全閥 Honeywell S245B Safety Valve High Performance Valve for Compressed Air

客訂產品請來信詢問

  • 漢威 S245B系列 安全閥
  • 最高工作溫度:
    ASME認證 180 °C
    TÜV / CE認證 260 °C
  • 壓力區間可設定介於0.5 ~ 30 bar, 每級 0.1 bar

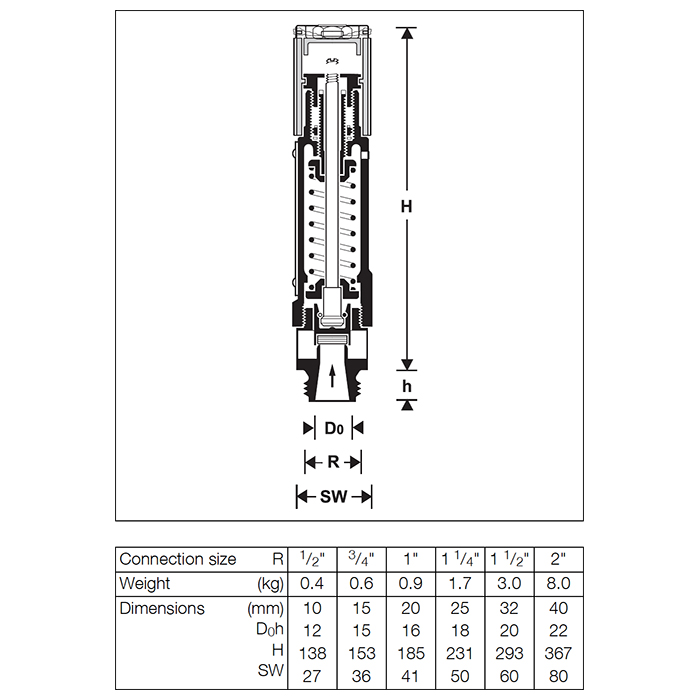

  • 連接尺寸: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
    範例型號: S245B-1ZA10.0

描述

Honeywell S245B Safety Valve
High performance valve for compressed air

Application

Safety valves of this type are direct loaded high performance safety valves with lifting device. They protect pressurized compressed air vessels (cylinders, tanks) against excessive pressure.
Safety valves of this type are used for compressors and other industrial purposes.

Special Features

  • Sturdy metal construction
  • Shakeproof lifting mechanism admitting no additional load
  • Approved by VdTÜV for pressure range from 0.5 – 30.0 bar
  • Approved by ASME (American Society of Mechanical Engineers) for pressure range 2.8 – 30.0 bar (41 – 435 PSI)
  • Certified to Pressure Equipment Directive 97/23/EC, Reference No. CE 0035
  • Set pressure adjustment at factory
  • Set pressure settings possible between 0.5 and 30 bar in steps of 0.1 bar
  • Light weight

Range of Application

  • Compressed air.
  • Non-toxic, non-corrosive and non inflammable gases which may be discharged to atmosphere.
  • Not suitable for oxygen and steam.
