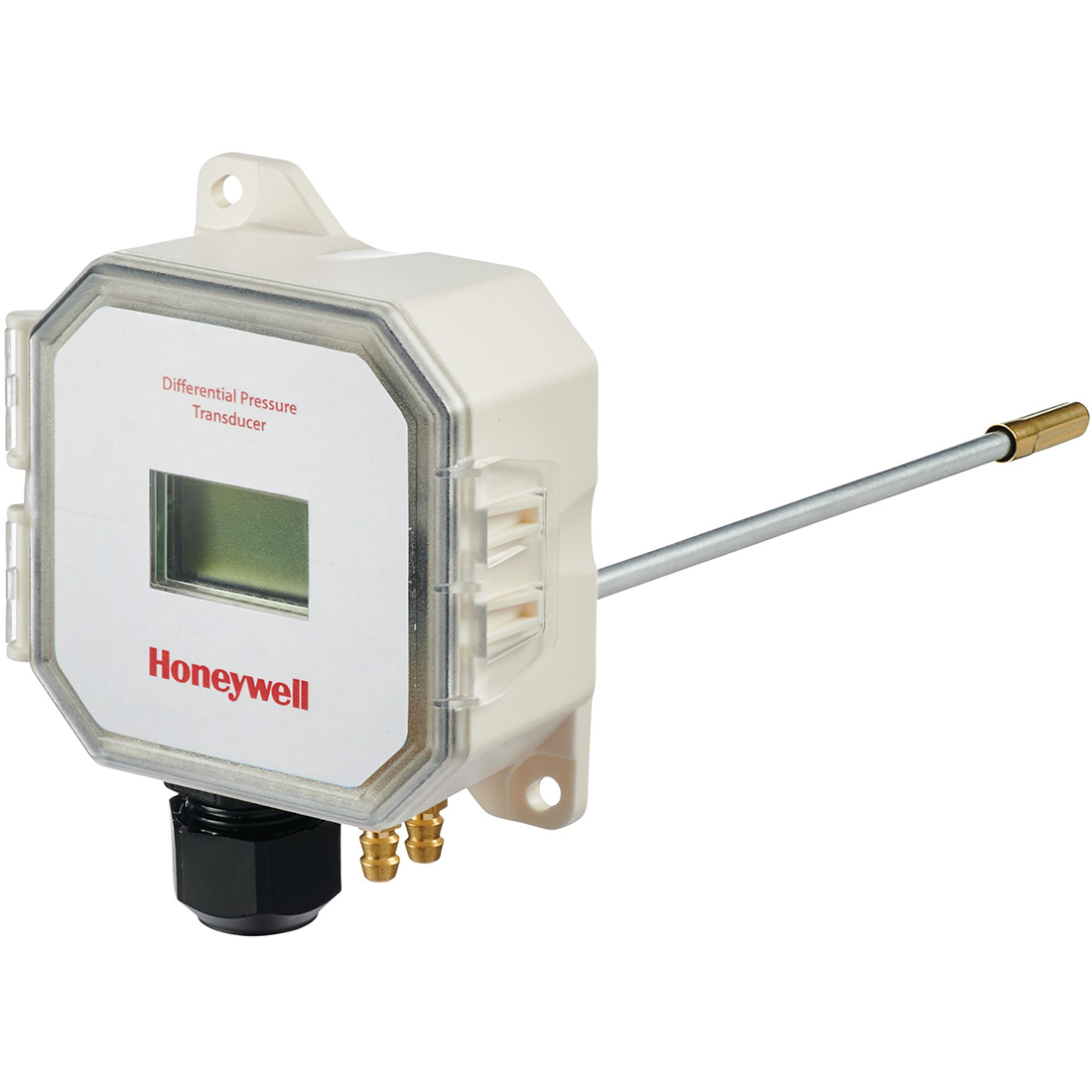

漢威 P7650B 壓差感測器 Honeywell Differential Pressure Sensors

請來信詢價

  • 美國品牌
  • 壓差感測器/傳送器
  • 適用於氣體
  • 0-10Vdc, 0-5Vdc, and 4-20mA Selectable
  • 可搭配P7650L系列配件後可測量風速(單位:  in WC/FPM 或 Pa/ms)
  • 風管型
  • 因型號眾多, 請來信詢問
  • 因應P7640系列停產, 本系列產品可完全替代原型號
  • 可搭配Honeywell T775 Series 2000系列產品使用

描述

Features

  • Reduce field failures
    – Excellent tolerance to overpressure & vibration reduces field failures
  • Reduce setup
    – Selectable ranges and scales reduce setup time and number of models to stock
  • High accuracy
    – High accuracy digital sensor with seven selectable sub-ranges maintains calibration and reduces callbacks
  • Water-resistant housing
    – IP65/NEMA 4 housing allows for mounting in wash-down locations
  • Maintenance free
    – High reliability sensor technology for long-term, maintenance-free operation
  • Circuit protection
    – Circuit protection avoids damage due to incorrect input wiring

Applications

  • The P7650 sensor can measure either air pressure or velocity. Measuring air velocity requires the use of the P7650L velocity pick-up probe. The P7650 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1” WC / 0-3,000 FPM or 1-10” WC / 3,000- 6,000 FPM with four field-selectable sub-ranges.
    The universal model comes in one pressure/velocity range: 0-10” WC / 0-7,000 FPM with seven field selectable sub-ranges. All variants are available with and without display. The P7650 has an IP65/NEMA 4 environmental rating.
  • Duct static pressure (Pressure mode)
  • Building or room pressure (Pressure mode)
  • Filter status (Pressure mode)
  • Air flow measurement (Velocity mode)



額外資訊

Media Compatibility

Dry air or inert gas

Input Power

Three-wire Volt mode: 24 Vac or 12-30 Vdc
Two-wire mA mode: 12-30 Vdc

Output Power

Field-selectable:
2-wire, loop-powered 4-20 mA (DC only, clipped and capped),
24 Vac/dc or
3-wire 0-5V/0-10V

Response Time

Standard: T95 in 20 sec
Fast: T95 in 2 sec, DIP switch selectable

Mode

Unidirectional or bidirectional, DIP switch selectable

Display (option):

Pressure mode: Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
Velocity mode: Signed 4-1/2 digit LCD, indicates velocity, overrange indicator

Proof Pressure

3 psid (20.6 kPa)

Burst Pressure

5 psid (34.5 kPa)

Pressure Mode Accuracy

±1% F.S. (combined linearity and hysteresis)

Velocity Mode Accuracy

±90 FPM (±0.45 MS) plus 5% of measured value

Temperature Effect

1” (250 Pa) models: 0.05%/°C;
10” (2.5 kPa) models: 0.01%/°C (Relative to 25 °C) 0 to 50 °C (32 to 122 °F)

Zero Drift (1-year)

1” (250 Pa) models: 2.0% max.;
10” (2.5 kPa) models: 0.5% max.

Zero Adjust

Pushbutton auto-zero and digital input (2-pos terminal block)

Operating Environment

0 to 60 °C (32 to 140 °F)

Altitude of Operation

0 to 3000 m

Pollution Deg.

2

Humidity Range

100% RH, non-condensing

Mounting Location

For indoor use only.

Fittings

Brass barb; 0.24” (6.1 mm) o.d.

Environmental Rating

IP65, NEMA 4

Flammability Rating

Plastic enclosure is UL 94 5VA fire retardant ABS

AGENCY APPROVALS

CE
EMC Conformance: EN 61000-6-3:2007 and A1:2011 Class B, EN 61000-6-1:2007
