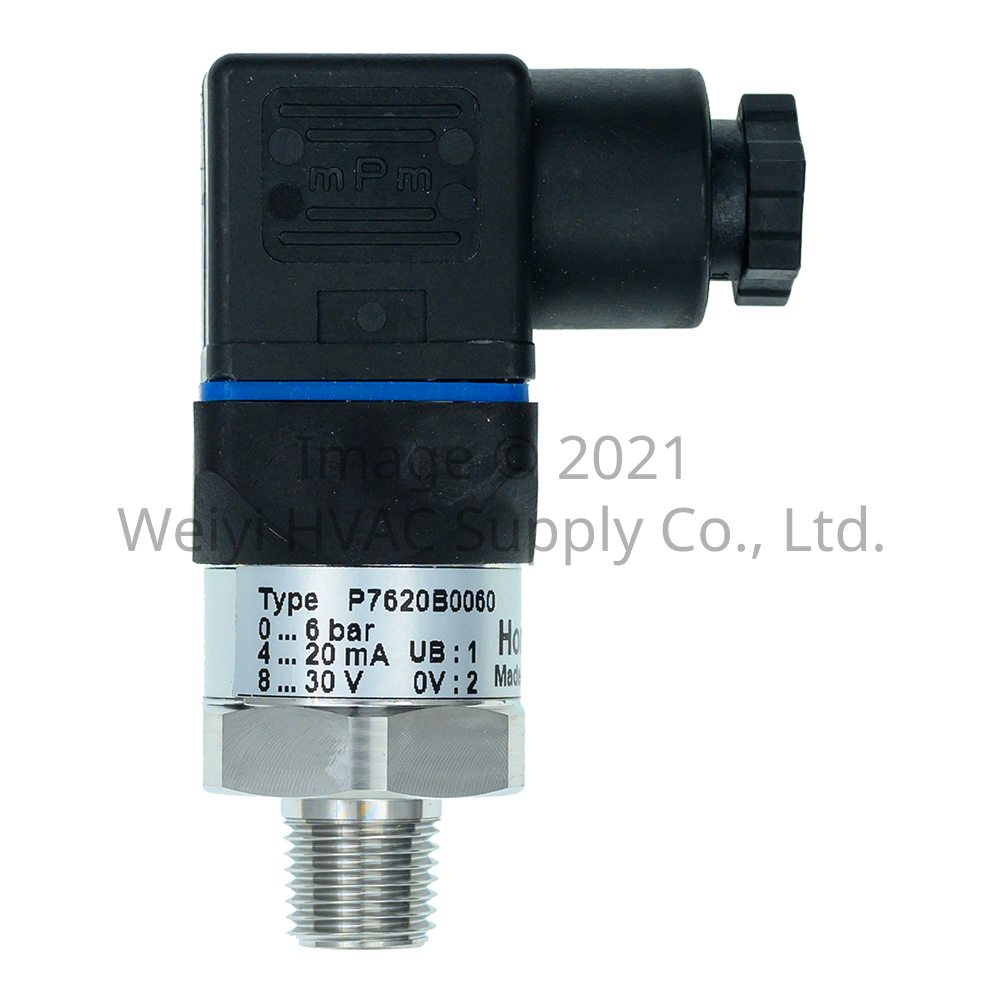

漢威 P7620B 壓力傳送器 Honeywell Metal Thin Film Pressure Transmitter

漢威 P7620B 壓力傳送器 Honeywell Metal Thin Film Pressure Transmitter

請來信詢價

  • 美國品牌
  • 壓力傳送器
  • 金屬膜片
  • 4…20mA輸出訊號
  • UL, CSA and CE認證
  • 因型號眾多, 請來信詢問
  • 請注意此系列產品已停產, 請來信詢問替代品
貨號: P7620B 分類: , , 標籤: , , ,

描述

General

The P7620B pressure transmitter can be used for a multitude of functions across many different applications.
Exceptionally simple installation, set-up and operation with an excellent price/performance ratio set this highly reliable product apart.

Features

  • Metal thin film
  • Wide pressure range (1bar ~ 25bar)
  • Non-linearity: 0.25% or 0.5%
  • Signal output: 4-20 mA
  • Electrical connection: DIN 175301-803A
  • Pressure connection: G1/4 DIN 3852-E
  • UL, CSA and CE Approvals

額外資訊

品牌

Accuracy at 25℃

≤ ± 0.5% including non-linearity, hysteresis, zero point and full scale error
Non-repeatability

≤ 0.1%
Long-term drift

≤ 0.1%
Medium

0-80 ℃
Ambience

0-80 ℃
Storage

-20-80 ℃
Operating Temperature range

0-80 ℃
Waterproof

IP65
Wetted parts

Pressure connection: 316L SST
Pressure sensor: 316L SST
Housing

316L SST
Power supply UB

8-30 VDC
Signal output

4-20 mA, 2-wire
Max. ohmic load RA

≤ (UB-8V) / 0.02A
Response time

< 4 ms
Insulation voltage

500 VDC
Model

P7620B0010, P7620B0016, P7620B0025, P7620B0040, P7620B0060, P7620B0100, P7620B0160, P7620B0250
