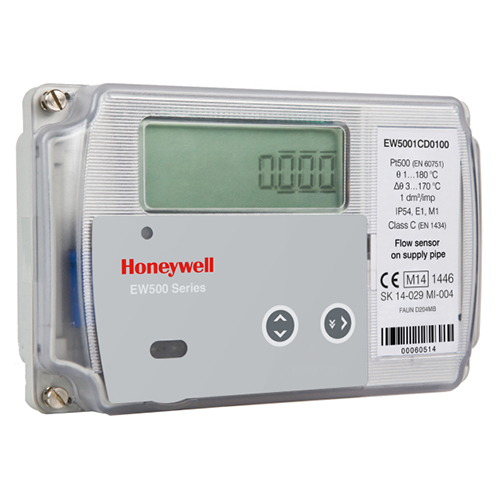

漢威 EW500系列 熱量計算器 Honeywell EW500 Series Energy Calculators

請來信詢價

  • 美國品牌
  • 原裝進口
  • 適用於冰水/熱水環境需要能源控制的系統中
  • 兼容於超音波/機械式流量感測器
  • 內建兩組通訊功能擴充槽(Modbus/M-Bus)
  • 電池充滿電後可連續使用10+1年
  • 本產品需搭配Honeywell流量閥(EW370/EW473/EW480)使用
貨號: EW500-Series 分類: , , , , , 標籤: , , , , ,

描述

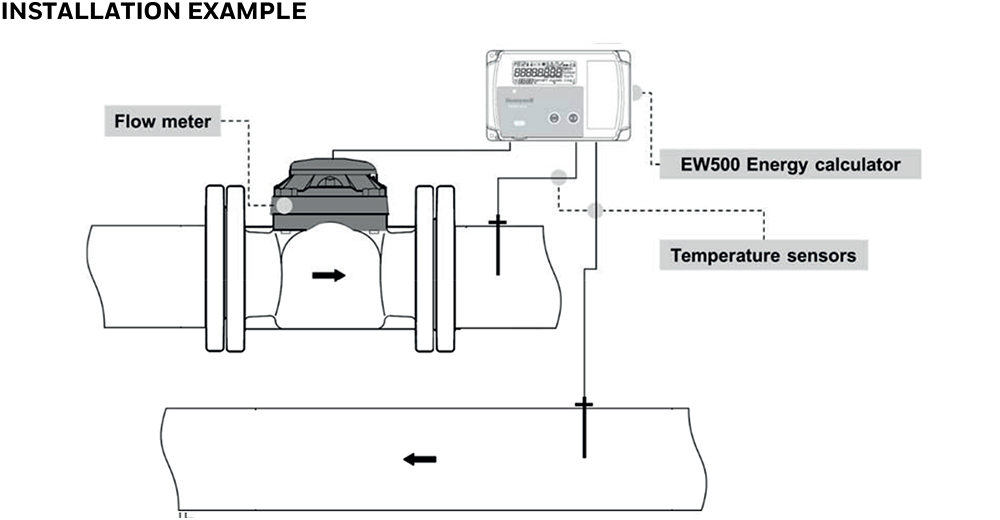

EW500 Series Electronic energy calculators were designed for use with ultrasonic or mechanical flow sensors and 2-wire Pt500 temperature sensors. The combination of EW500, flow and temperature sensors provides fluid energy metering of heating and chilled water systems.Metering of hydronic heating and / or cooling energy in hydronic systems based on volume, supply and return temperature. Suitable for energy metering of cooling, heating and combined cooling and heating systems.

Features

  • Two slots for retrofittable communication modules
  • Replaceable battery
  • Extensive readable data memory









額外資訊

Suitable flow sensors

Ultrasonic or impeller / turbine
Nominal flow range

0.6…3,000m³/h
Ambient temperature

5…55°C
Storage temperature

-25…60°C
Protection class

IP54 (standard)
IP65 or IP68 on request

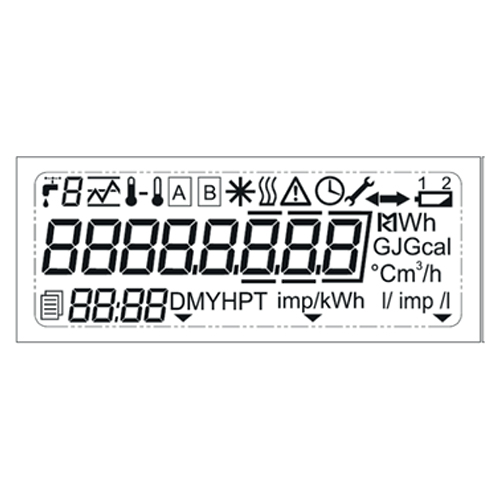

Display

Display LCD, 8+4-digit with symbols
Energy unit

kWh or MWh
Volume unit

m³
Total values

99 999 999kWh
9 999 999.9MWh
99 999.999…99 999 999m³
Values displayed

Energy – Power – Volume – Flow rate – Temperature
Measuring cycle

10s
Temperature sensors

Pt500 with 2-wire leads, other types available on request
Temperature range

1…180°C
Temperature difference

3…175K
Environmental class

C (M1, E1)
Battery lifetime

10+1 years
Interfaces

Optical
Two slots for retrofittable
communication modules
Approvals

MID
