描述

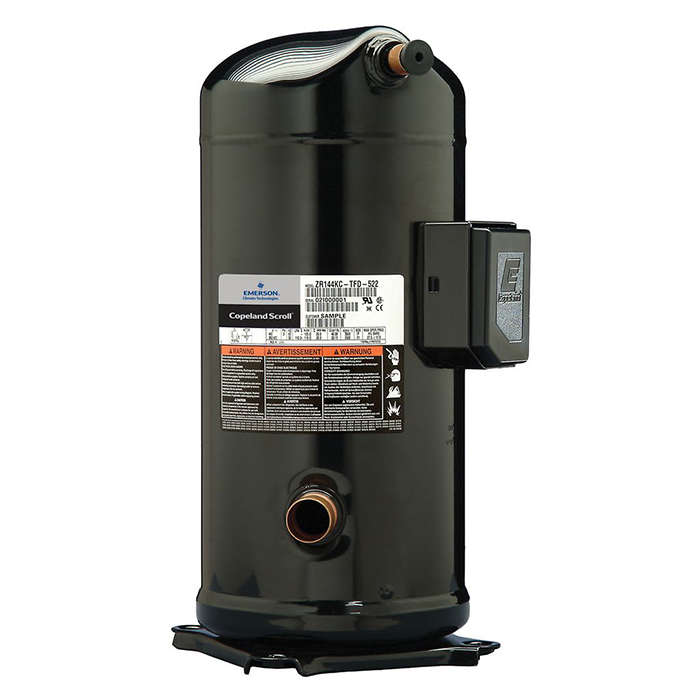

黑金剛 全密渦卷式 壓縮機 R22/R134a 能力尺寸表
| 壓縮機型號 | 冷凍能力 | 排氣量 | 高壓管 | 低壓管 | 長(L) | 寬(W) | 高(H) | 油量 | 重量 |
|---|---|---|---|---|---|---|---|---|---|
| Model | BTU/HR | In^3/Rev | Inch | Inch | Inch | Inch | Inch | c.c. | KG |
| ZR26K3 | 26500 | 2.20 | 1/2 | 3/4 | 9.69 | 9.69 | 14.84 | 1120 | 26.8 |
| ZR32K3 | 32600 | 2.65 | 1/2 | 3/4 | 9.69 | 9.69 | 15.73 | 1240 | 26.3 |
| ZR36K3 | 36900 | 3.02 | 1/2 | 3/4 | 9.69 | 9.69 | 15.73 | 1240 | 27.3 |
| ZR40K3 | 40600 | 3.31 | 1/2 | 3/4 | 9.69 | 9.69 | 16.25 | 1240 | 27.9 |
| ZR48KS/C | 49100 | 4.00 | 1/2 | 7/8 | 9.69 | 9.69 | 16.95 | 1360 | 28.1 |
| ZR54KS/C | 54500 | 4.46 | 1/2 | 7/8 | 9.69 | 9.69 | 16.94 | 1240 | 30.0 |
| ZR57KC | 57500 | 4.71 | 1/2 | 7/8 | 9.69 | 9.69 | 17.75 | 1900 | 39.0 |
| ZR57KS | 58500 | 4.71 | 1/2 | 7/8 | 9.69 | 9.69 | 16.94 | 1240 | 30.0 |
| ZR61KC | 62000 | 5.04 | 1/2 | 7/8 | 9.69 | 9.69 | 17.75 | 1950 | 35.4 |
| ZR72KC | 73500 | 5.98 | 1/2 | 7/8 | 9.69 | 9.69 | 17.75 | 1770 | 38.6 |
| ZR81KC | 82000 | 6.58 | 3/4 | 7/8 | 9.69 | 9.69 | 17.95 | 1770 | 39.0 |
| ZR94KC | 96500 | 7.76 | 7/8 | 1-1/8 | 10.38 | 11.23 | 18.75 | 2510 | 56.8 |
| ZR108KC | 109000 | 8.72 | 7/8 | 1-1/8 | 10.38 | 11.23 | 21.00 | 3250 | 59.9 |
| ZR125KC | 128000 | 10.20 | 7/8 | 1-1/8 | 10.38 | 11.23 | 21.00 | 3250 | 61.3 |
| ZR144KC | 146000 | 11.65 | 7/8 | 1-1/8 | 10.38 | 11.23 | 21.00 | 3250 | 61.3 |
| ZR160KC | 160000 | 12.76 | 7/8 | 1-1/8 | 12.83 | 11.61 | 21.72 | 3250 | 66.3 |
| ZR190KC | 190000 | 15.20 | 7/8 | 1-1/8 | 12.83 | 11.61 | 21.72 | 3250 | 66.3 |
| ZR250KC | 250000 | 19.84 | 1-3/8 | 1-5/8 | 16.80 | 14.80 | 28.60 | 4670 | 138.9 |
| ZR310KC | 306000 | 25.05 | 1-3/8 | 1-5/8 | 15.37 | 28.50 | 28.50 | 6800 | 160.3 |
| ZR380KC | 379000 | 30.67 | 1-3/8 | 1-5/8 | 16.80 | 18.50 | 18.50 | 6300 | 177.1 |
| ZRT320KC | 319000 | 25.52 | 1-3/8 | 1-5/8 | 12.30 | 23.50 | 23.50 | 6500 | 129.8 |
| ZRT380KC | 378000 | 30.40 | 1-3/8 | 1-5/8 | 12.30 | 23.50 | 23.50 | 6500 | 132.6 |
